PLST-048F-103-TASL-003 - Datasheet
MBA
Category Information
Plungers - Spring Threaded Adapter - Locking - StainlessStainless Locking Spring Threaded Adapter Plungers. Use your own handle on the thread provided.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

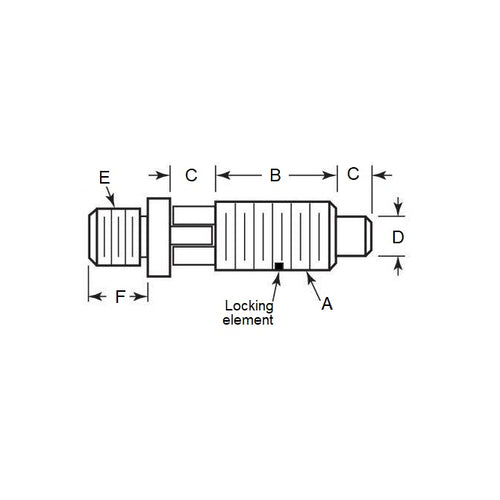

Product Data
- Body Thread Size (A) : 10-32 UNF (4.76mm)
- Body Thread Length (B)
10.3
mm
(Equiv. 0.406 in.) - Initial Pressure (F1) 1.0 N
- Final Pressure (F2) 3.0 N
- Tip Diameter (D) 2.6 mm
- Tip Length (C) 2.4 mm
- End Thread Size (E) 10-32 UNC (4.762mm)
- End Thread Length (F) 6.0 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 7806A11
- NRP-20
- NRP20
