IN-RIV-048C-057-R - Datasheet
MBA
Category Information

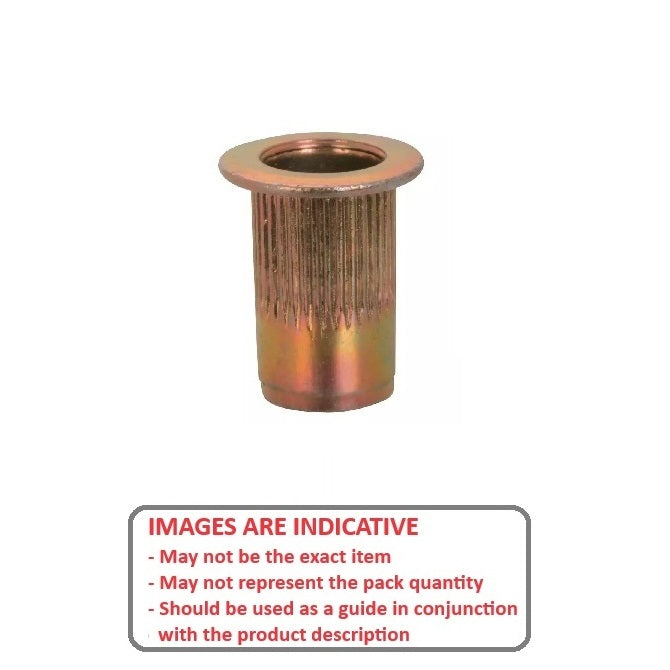

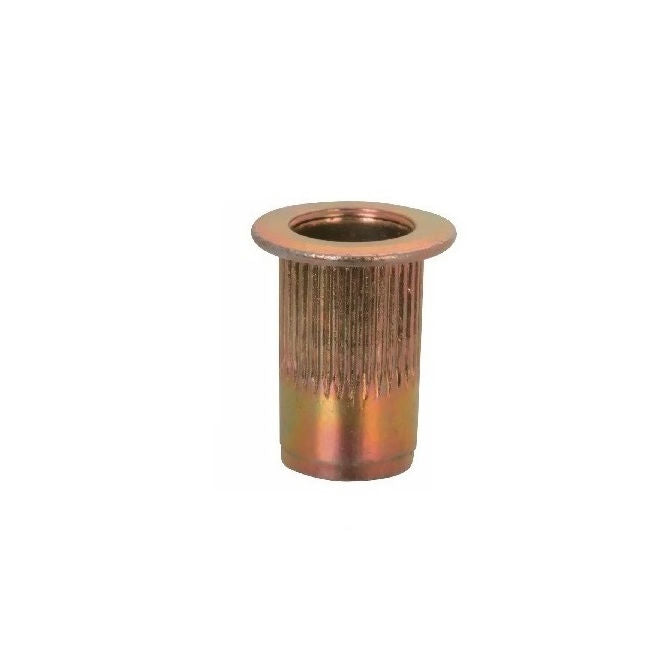

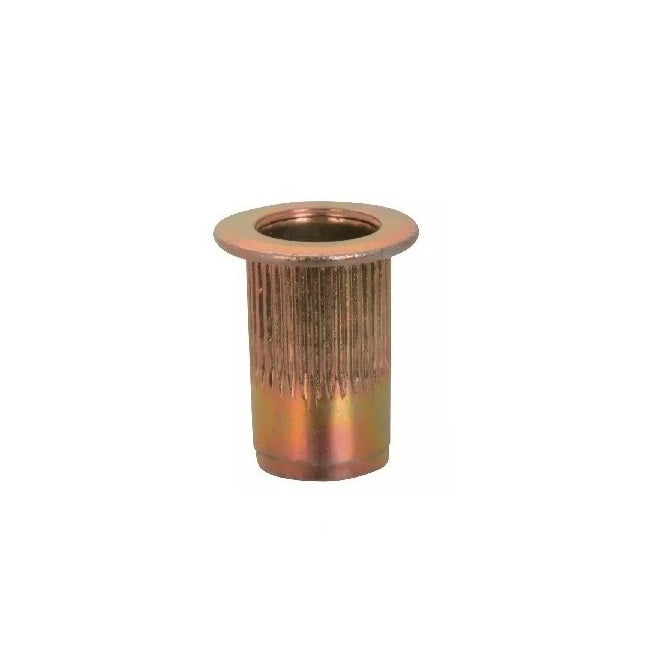

Inserts - Rivet Nuts - Klik - RibbedRibbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool
- These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
- Insert is placed into the hole in the parent material and crimped up with the installation tool.
- Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
- Made from plated steel.
Product Data
- Internal Thread : 10-24 UNC (4.76mm)
- Drill Hole Size
7.54
mm
(Equiv. 0.297 in.) - Grip Range
3.30 - 5.72
mm

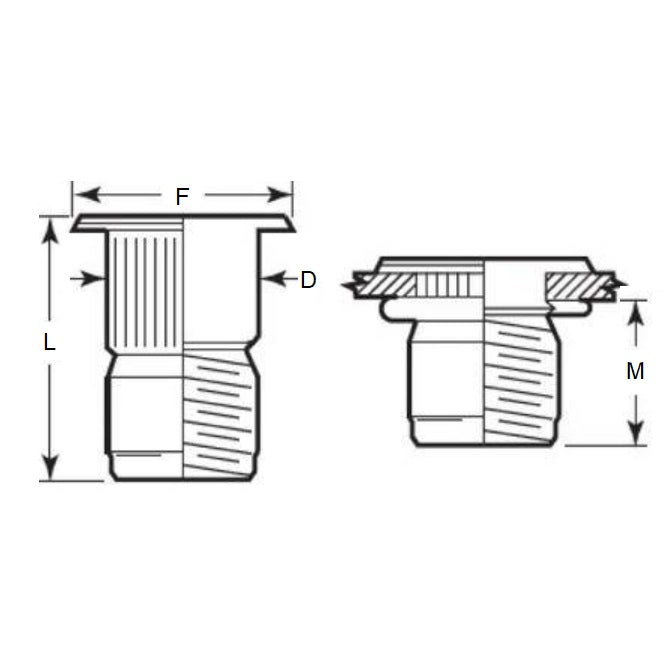

(Equiv. 0.13 in.) - Body Diameter (D) 7.52 mm
- Flange Diameter (F) 10.16 mm
- L 15.088 mm
- M 7.620 mm
- 3.30 - 5.72
Product Compliance and Data
Additional Resources
Cross References
- 95105A131
- ALC47332
- ALC-47332
