RNAST6 - Datasheet

MBA

Category Information

Rollers - Track - Without Inner race

Without Inner race Track Rollers. This is the main category in this series

    Product Data

    • ID (d) : 10.00 mm
    • O.D. (D) 19.00 mm
    • Width (C) 9.80 mm
    • Inner Ring Width (B) 10.00 mm
    • OD Type Cylindrical
    • Dynamic Load Rating 420.00 kgf
    • Static Load Rating 460.00 kgf
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Nachi® RNAST-6
      • RNAST6
      View full details

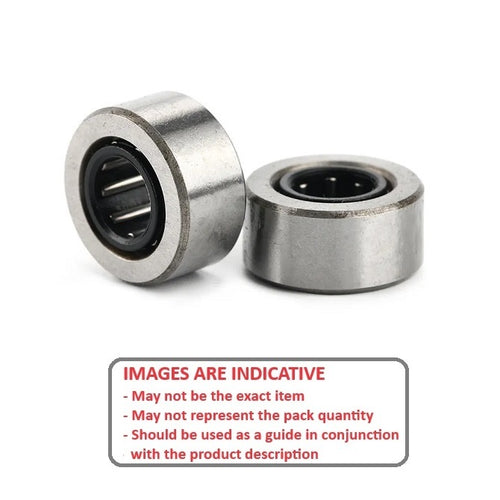

      RNAST6Image
