PLBP-100-130-S3-015 - Datasheet
MBA
Category Information

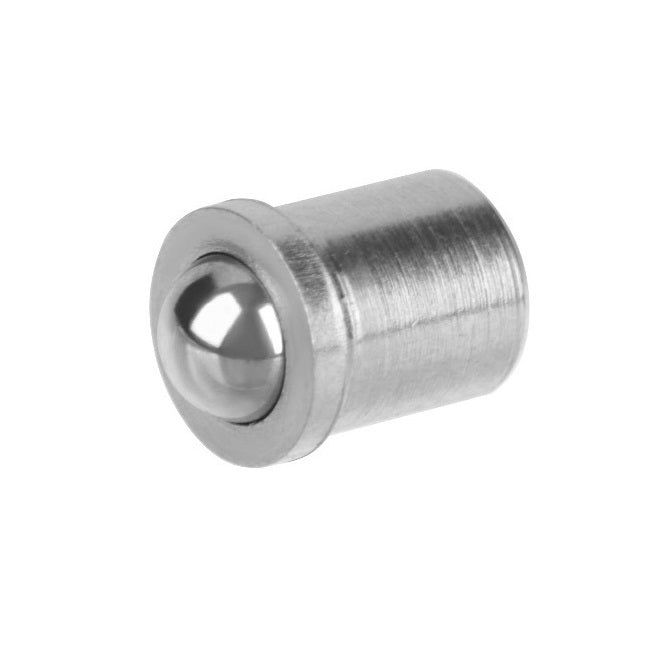

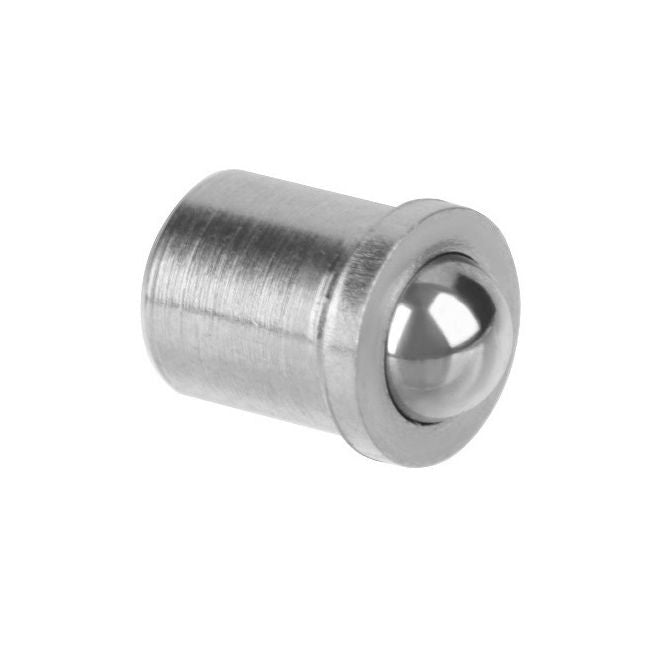

Plungers - Ball Push Fit - Stainless Body - Stainless BallStainless Ball Stainless Body Ball Push Fit Plungers. Unthreaded
- Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
- Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
- Ball: W.-Nr 1.4034 (420) Stainless Steel.
- Spring: W.-Nr 1.4310 (301) Stainless Steel.
- Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.
Product Data
- Body Diameter (D)
:
10.00
mm
(Equiv. 0.394 in.) - Length (L)
13.0
mm
(Equiv. 0.512 in.) - Initial Pressure (F1) 9.0 N
- Final Pressure (F2) 15.0 N
- Ball Diameter (D1) 8.0 mm
- Ball Height (H) 2.8 mm
- Shoulder Diameter (S) 11.0 mm
- 11.000
- Material Stainless Steel 400 Series Hardened
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-PFSSN10-10P
- CPFSSN1010P
