0R-0100-0065-S416-T14 - Datasheet

MBA

Category Information

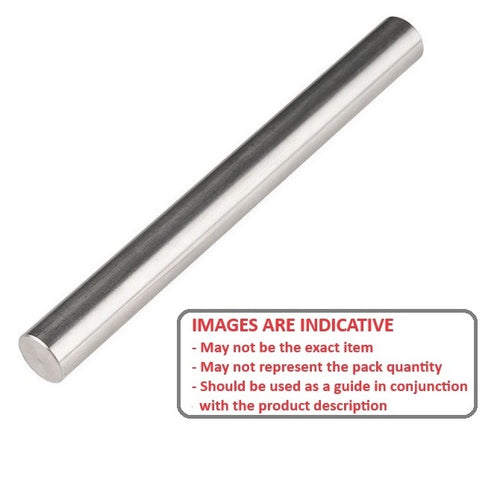

Shafting - Precision Ground - Stainless 416 Grade Hardened

Stainless 416 Grade Hardened Precision Ground Shafting. Precision ground shafting. 416 grade. Hardened and recommended for use with precision bearings.

An expanded range may be available on special order. Please enquire.

Product Data

Diameter (d) : 10.000 mm _{- 0.005 / - 0.014}
(Equiv. 0.394 in.)
Length (L) 65 mm
(Equiv. 2.559 in.)
Material 416 Stainless
Straightness 0.0003 mm / mm
Surface Finish Ground 0.25 um Microns
Hardness HRC 26-32
Ends Chamfered
Material Stainless Steel AISI 416 Hardened

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

S40PX0MHGAM065
S40PX0MHGAM-065
