Miniature Bearings Australia

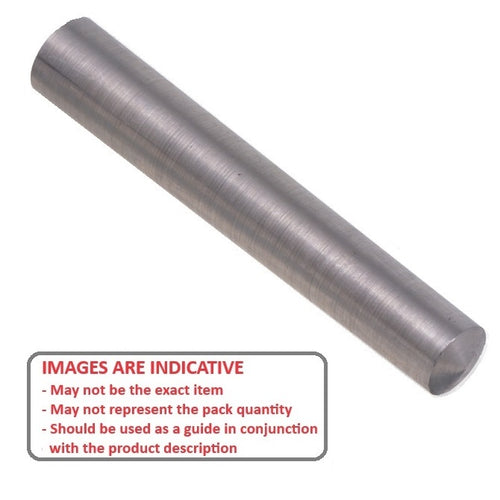

TP-020-0127-S3 - Datasheet
MBA
Category Information
Pins - Taper Imperial - Miniature - Stainless SteelStainless Steel Miniature Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Miniature sizes.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Large End Diameter (D2)
:
1.98
mm
(Equiv. 0.078 in.) - Length (L)
12.70
mm
(Equiv. 0.5 in.) - Nom. Small End Diameter (D)
1.72
mm
(Equiv. 0.068 in.) - Pin Number 6/0
- Material Stainless Steel Grade 303/304 HRB80
Product Compliance and Data
Additional Resources
Cross References
- 90681A003
- NoCor TPS-60-0500
- TPS600500
- S7250Y-6016
- S7250Y6016
