BCF6 - Datasheet

MBA

Category Information

Bearings - Pivot - Without Inner Ring

Without Inner Ring Pivot Bearings. Spindle is not supplied with these bearings

  • Designed to allow controlled pivoting motion around a fixed axis.
  • Small pivot bearings find applications in mechanical scales, clockmaking, aeronautics and aerospace, laboratory equipment, optical imaging systems, medical devices, and automation and robotics systems.

Product Data

  • Contact Point (d) : 1.60 mm
    (Equiv. 0.063 in.)
  • OD (D) 6.00 mm
    (Equiv. 0.236 in.)
  • Width (C) 2.5 mm
    (Equiv. 0.098 in.)
  • r (min) 0.15 mm
  • Static Load Rating (Cor) 1.0 kgf
  • Dynamic Load Rating (Cr) 11.0 kgf
  • Minimum Shaft Diameter (d1) 1.9 mm
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    View full details

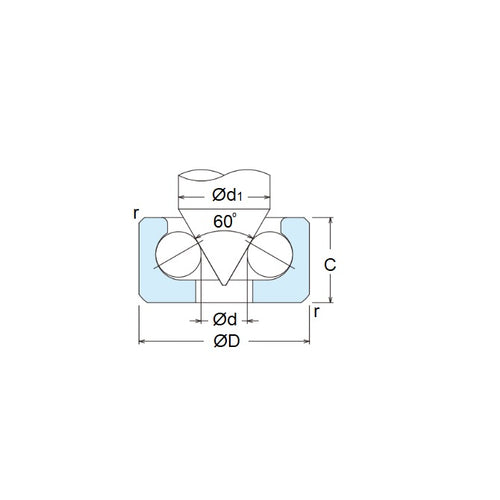

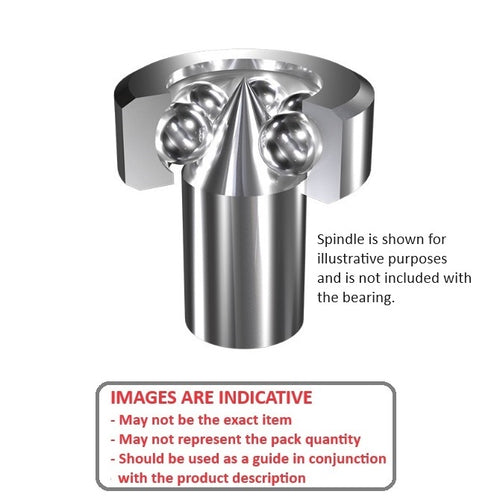

    BCF6DiagramBCF6Image
