GPT-0159-0953-3 - Datasheet

MBA

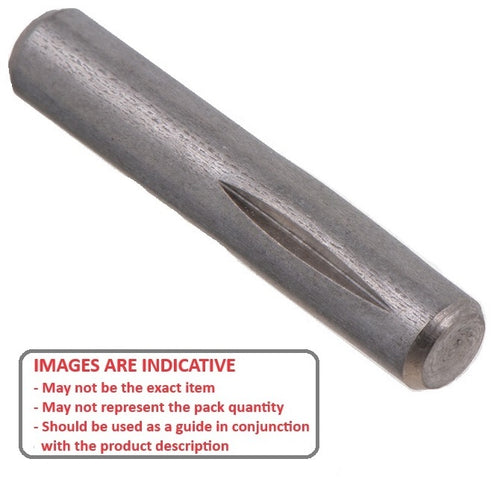

Groove Pins. Non threaded press fit fastener that doesn't require a reamed hole as do dowel pins.Commonly used in place of taper pins.

An expanded range may be available on special order. Please enquire.
An economic method of fastening without the need for precision drilled and reamed holes.
Recommended hole tolerance is H11.
Total length may be slightly longer than the nominal length.
Expanded portion of the pin is compressed into the hole a few thousands of an inch wider than the nominal pin diameter. Radial forces lock the pin securely into the drilled hole.

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

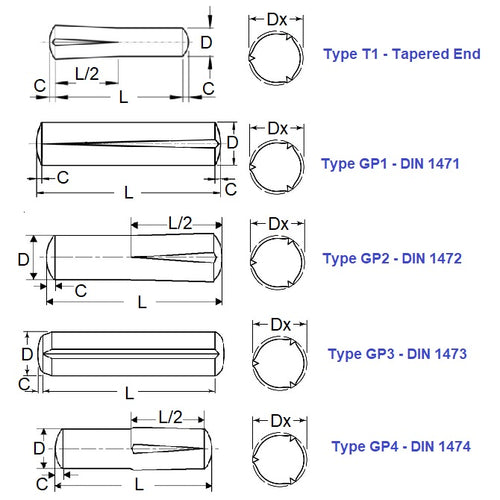

Nominal Diameter (D) : 1.588 mm
(Equiv. 0.063 in.)
Length (L) 9.53 mm
(Equiv. 0.375 in.)
Expanded. Dia [min / max] (Dx) 1.651 / 1.701 mm
(Equiv. 0.065 in.)
Type T1 Tapered End
Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Country of Origin: US
