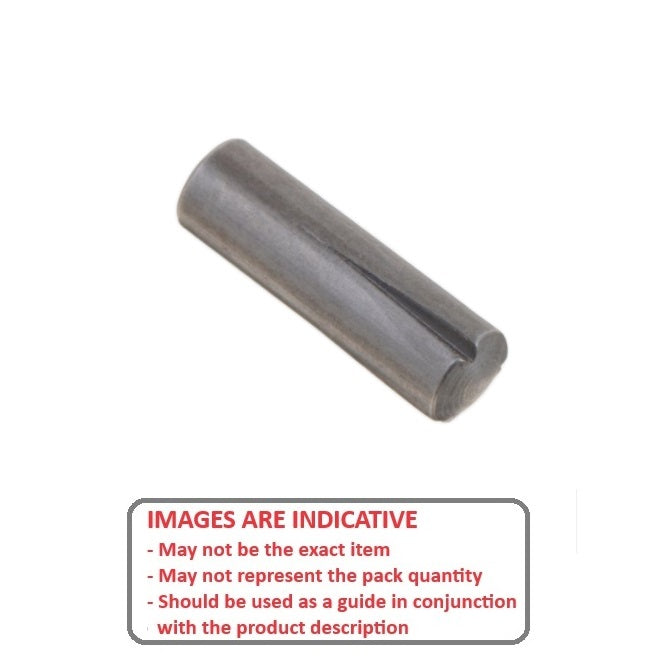

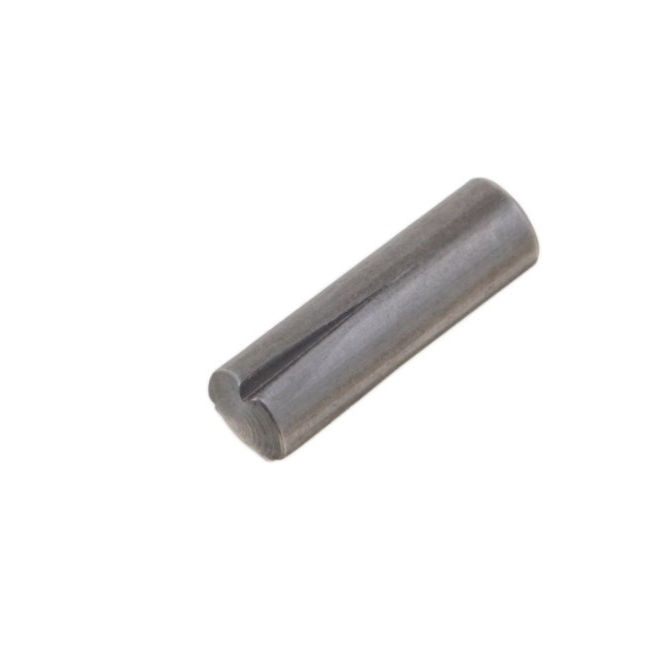

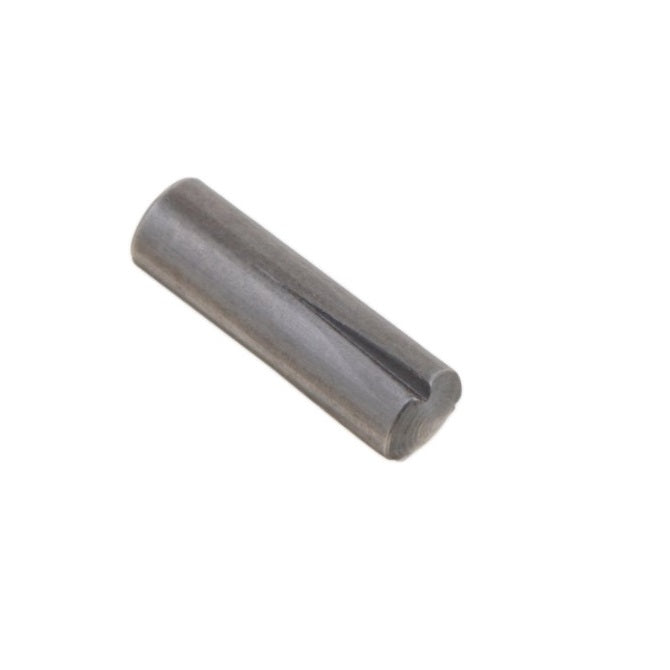

GP2-0150-1600-BO - Datasheet
MBA
Category Information
Pins - GrooveGroove Pins. Non threaded press fit fastener that doesn't require a reamed hole as do dowel pins.Commonly used in place of taper pins.
- An economic method of fastening without the need for precision drilled and reamed holes.
- Recommended hole tolerance is H11.
- Total length may be slightly longer than the nominal length.
- Expanded portion of the pin is compressed into the hole a few thousands of an inch wider than the nominal pin diameter. Radial forces lock the pin securely into the drilled hole.
Product Data

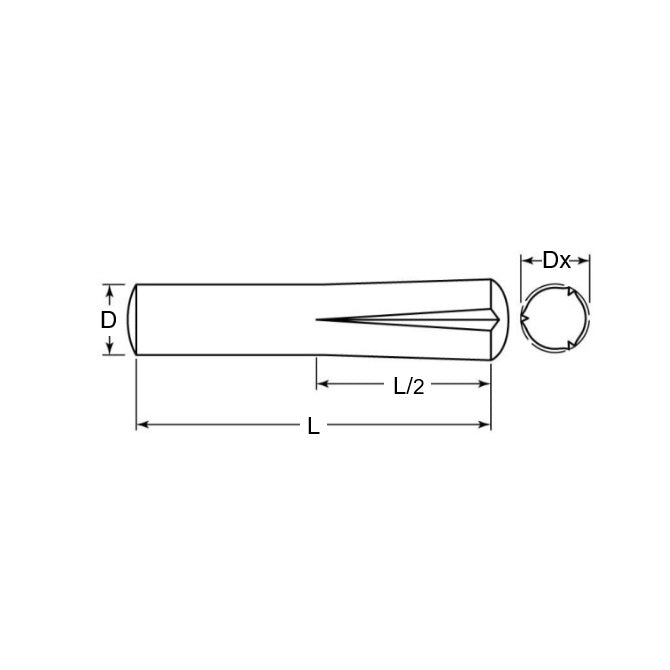

- Nominal Diameter (D)
:
1.500
mm
+ 0.00 / - 0.025
(Equiv. 0.059 in.) - Length (L)
16.000
mm
(Equiv. 0.63 in.) - Expanded. Dia [min / max] (Dx)
1.63
mm
(Equiv. 0.064 in.) - Type GP2 - DIN 1472
- Material Black Oxide Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi SPRINGPINFB-ST-D1.5-16
- SPRINGPINFBSTD1516
