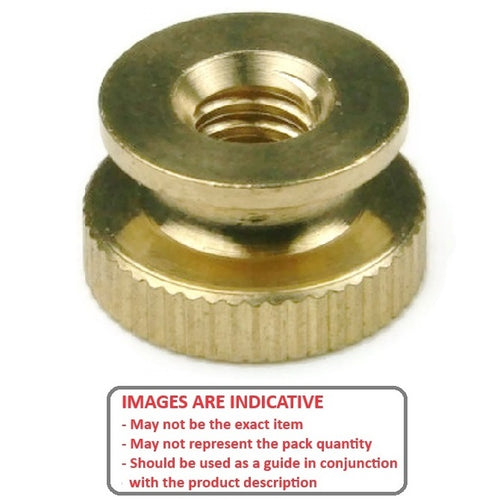

NT064C-THC-BR - Datasheet

MBA

Product Data

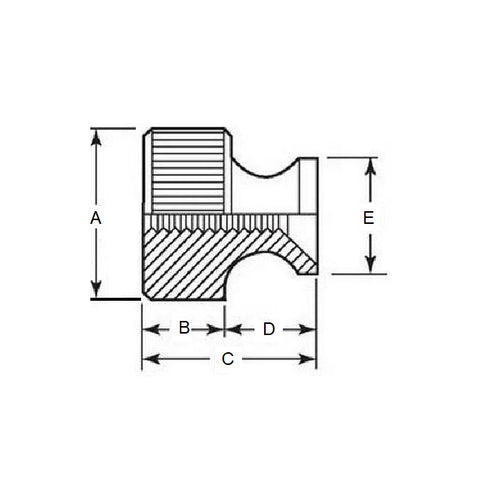

• Thread Size : 1/4-20 UNC (6.35mm)
• Overall Length (C) 9.5 mm
• Head Width (B) 3.97 mm
• Head Diameter (A) 14.29 mm
• Collar Diameter (E) 11.91 mm
• Collar Height (D) 5.56 mm
• Material Brass
