PLST-064C-191-S3HX-040 - Datasheet

MBA

Category Information

Plungers - Spring - No Handle - Stainless - Hex Nose

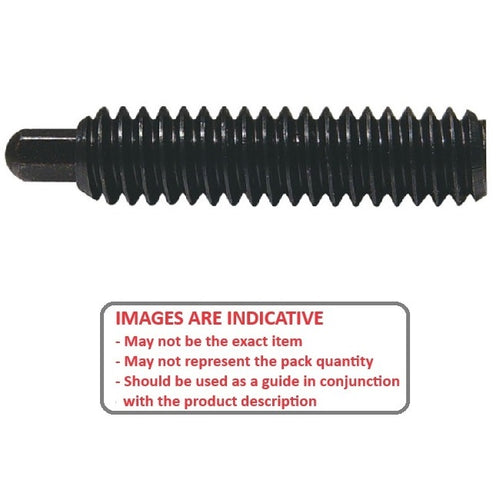

Hex Nose Stainless No Handle Spring Plungers. Stainless Steel body and steel hex nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

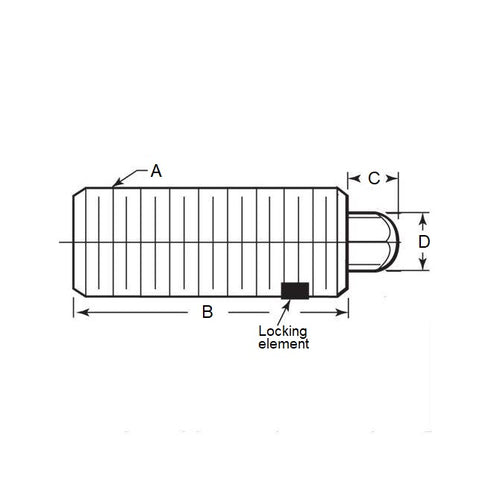

Product Data

  • Thread Size (A) : 1/4-20 UNC (6.35mm)
  • Thread Length (B) 19.1 mm
    (Equiv. 0.752 in.)
  • Initial Pressure (F1) 8.9 N
  • Final Pressure (F2) 40.0 N
  • Tip Diameter (D) 3.0 mm
  • Tip Length (C) 3.2 mm
  • Body Length (B) 19.1 mm
  • Drive Hex
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • SLS-4A
  • SLS4A
  • PLST064C191S3040
  • SSPH54B
  • SSPH-54B
