PLST-064C-254-AS-018 - Datasheet

MBA

Category Information

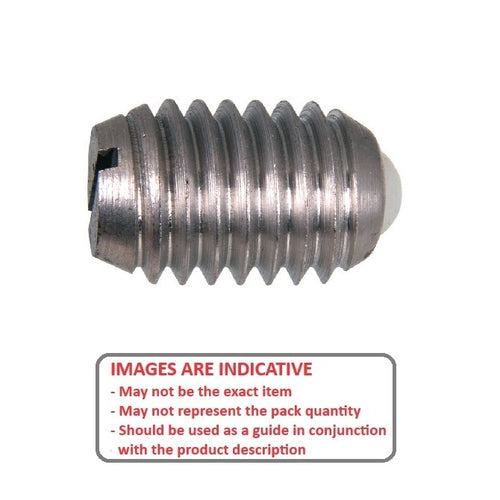

Plungers - Spring - No Handle - Stainless - Acetal Nose

Acetal Nose Stainless No Handle Spring Plungers. 303 Stainless Steel body and acetal nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

  • Thread Size (A) : 1/4-20 UNC (6.35mm)
  • Thread Length (B) 25.4 mm
    (Equiv. 1 in.)
  • Initial Pressure (F1) 4.5 N
  • Final Pressure (F2) 17.8 N
  • Tip Diameter (D) 3.0 mm
  • Tip Length (C) 4.8 mm
  • Body Length (B) 25.4 mm
  • Drive Hex
  • Material Stainless Steel Body with Acetal
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 2177A47
  • SDL-4
  • SDL4
