PLST-064C-102-HXCLLK-018 - Datasheet

MBA

Category Information

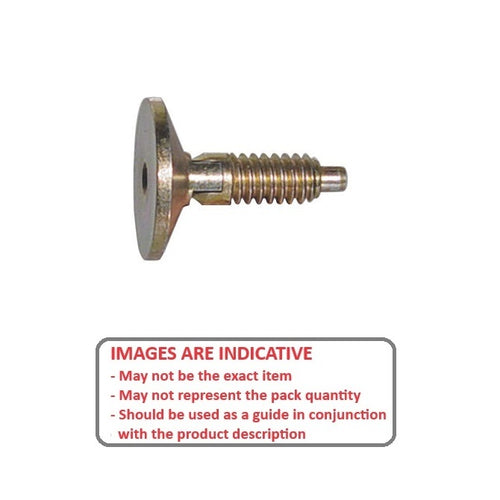

Plungers - Spring - Hex Drive Handle - Locking

Locking Hex Drive Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

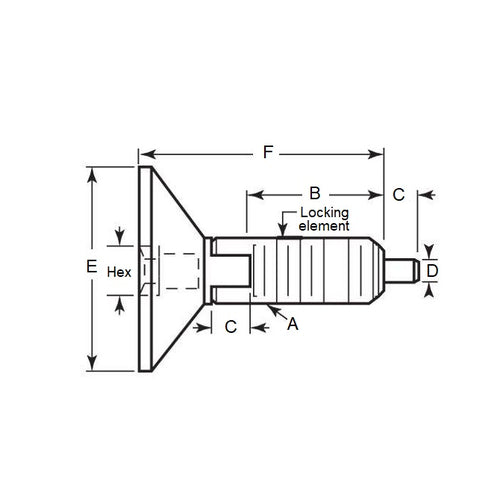

  • Thread Size (A) : 1/4-20 UNC (6.35mm)
  • Thread Length (B) 10.2 mm
    (Equiv. 0.402 in.)
  • Initial Pressure (F1) 4.5 N
  • Final Pressure (F2) 17.8 N
  • Tip Diameter (D) 3.1 mm
  • Tip Length (C) 3.2 mm
  • Head Diameter (E) 19.1 mm
  • Overall Length (F) 20.5
  • Socket Size (G) 3.2
  • Additional With Locking Element
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 2375A35
  • FHR1
  • FHR-1
