PLST-064C-290-HTCL-011 - Datasheet
MBA
Category Information

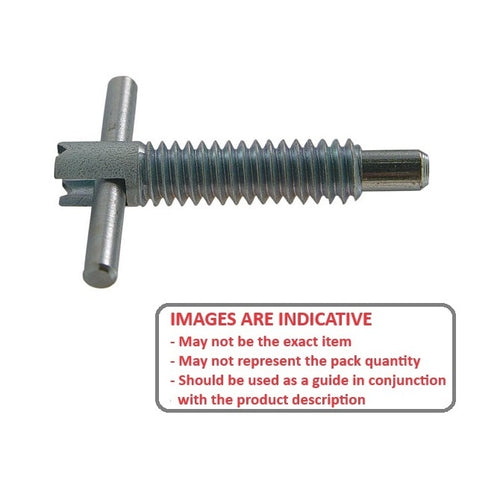

Plungers - Spring - Tee Handle - Locking - SteelSteel Locking Tee Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.

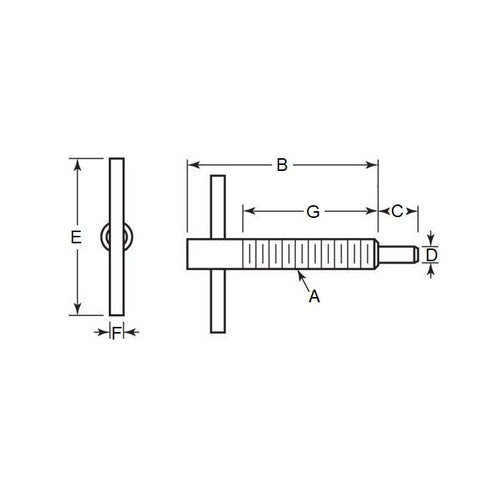

Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Thread Length (B)
20.3
mm
(Equiv. 0.799 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 11.1 N
- Tip Diameter (D) 3.9 mm
- Tip Length (C) 6.4 mm
- Overall Length (B) 29.0 mm
- Handle Thickness (F) 3.3
- Thread Length (G) 20.3 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 31265A16
- FRT25
- FRT-25
