SC064C-022-C-SK-CZ - Datasheet
Brighton Best
Category Information

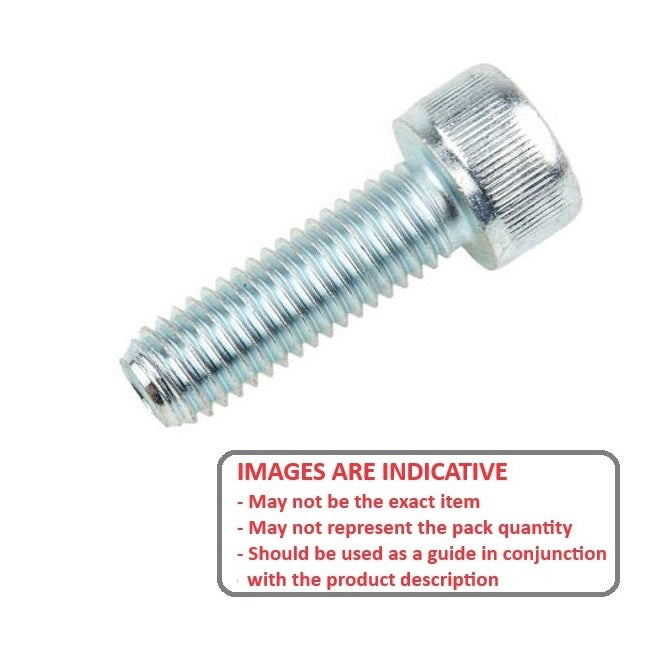

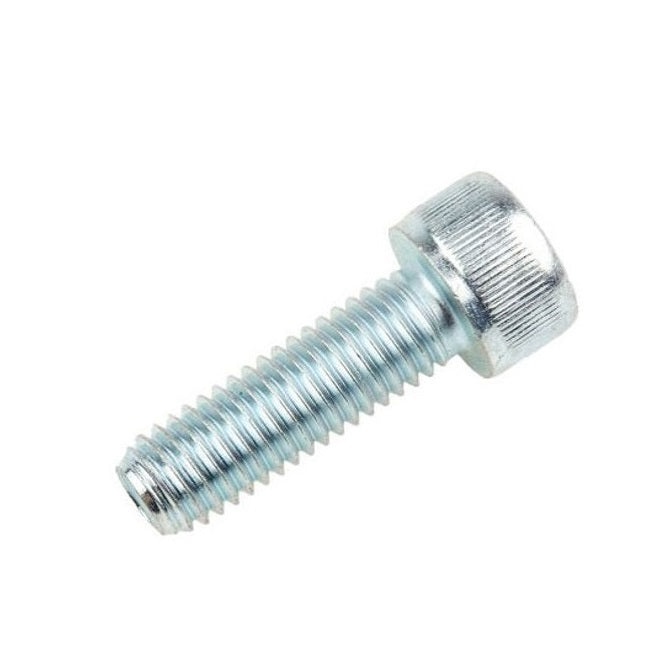

Screws - Socket Cap - Zinc PlatedZinc Plated Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 1/4-20 UNC (6.35mm)
- Thread Length (L)
22.2
mm
(Equiv. 0.874 in.) - Material Zinc Plated Steel
- Head Length (B Max.) 6.4 mm
- Head Diameter (A Max.) 9.5 mm
- Drive Depth (E) 3.05 mm
- Shank Diameter (C) 6.18 - 6.35 mm
- Hex Key (D) 4.76 (3/16) mm
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Min thread Length 22.2 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 872151
- 90128A246
