PLST-064C-127-TAS-011 - Datasheet
MBA
Category Information

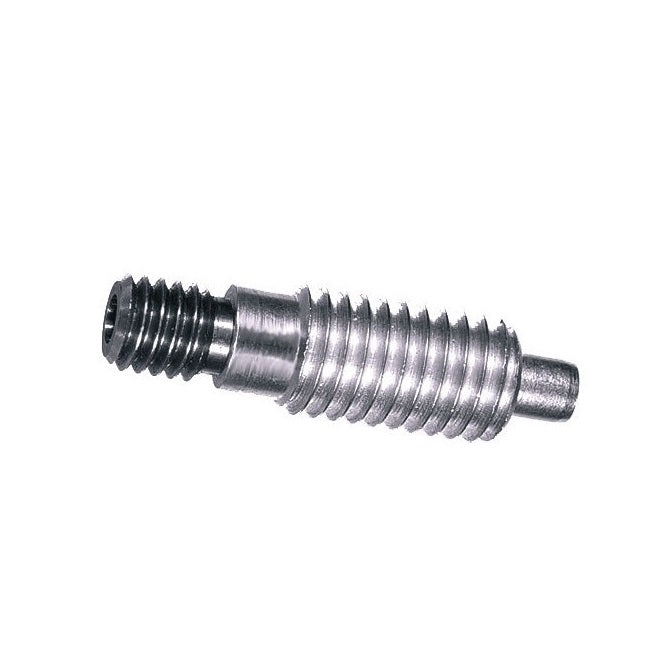

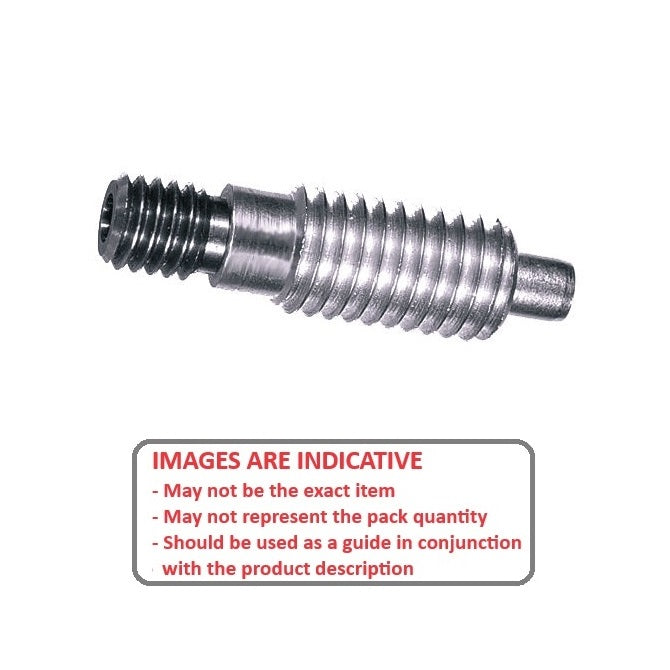

Plungers - Spring Threaded Adapter - Non Locking - StainlessStainless Non Locking Spring Threaded Adapter Plungers. Use your own handle on the thread provided.

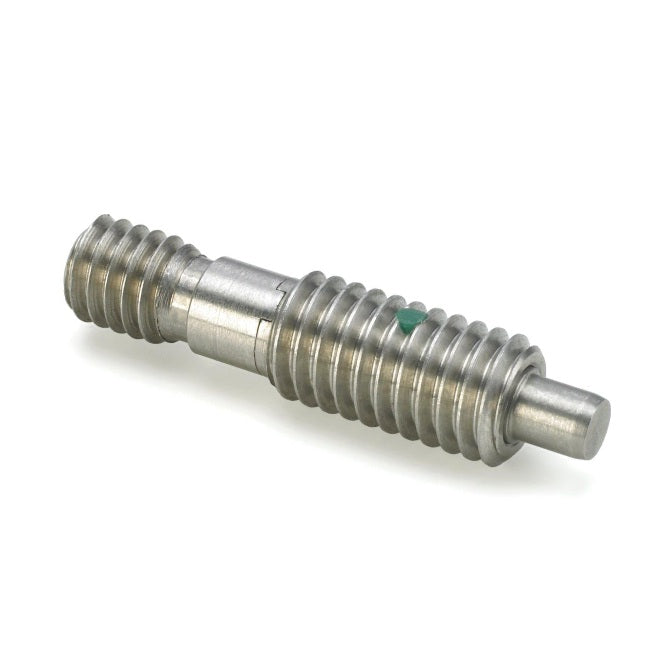

- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

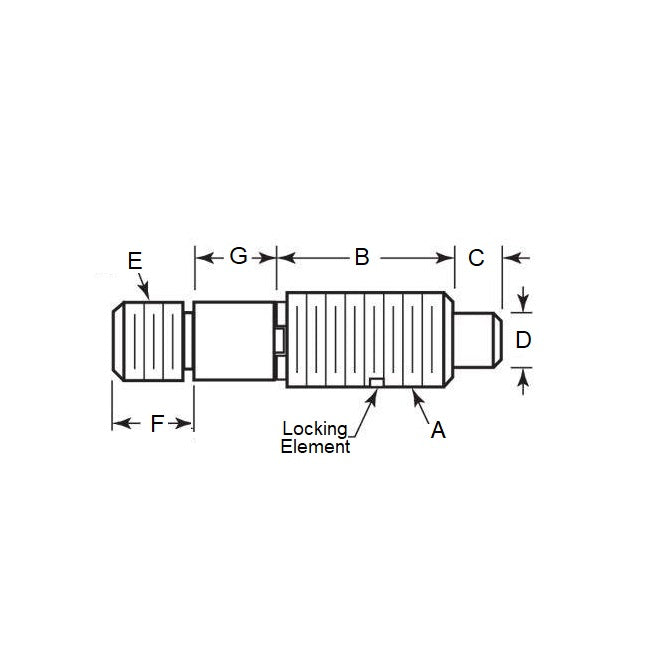

Product Data
- Body Thread Size (A) : 1/4-20 UNC (6.35mm)
- Major Thread Length (B)
12.7
mm
(Equiv. 0.5 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 11.1 N
- Tip Diameter (D) 3.2 mm
- Tip Length (C) 3.2 mm
- End Thread Size (E) 10-32 UNC (4.762mm)
- End Thread Length (F) 6.0 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- NRP70
- NRP-70
