IN-RIV-064C-066-R - Datasheet

MBA

Category Information

Inserts - Rivet Nuts - Klik - Ribbed

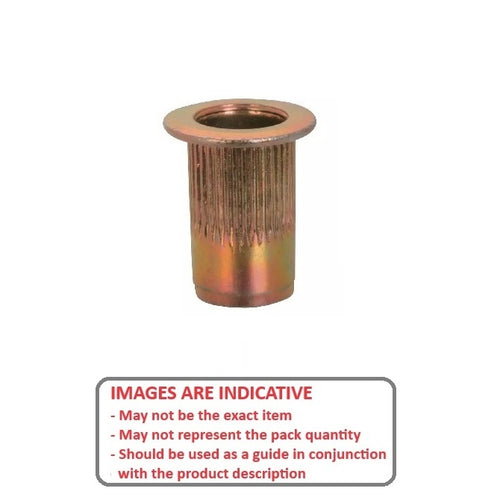

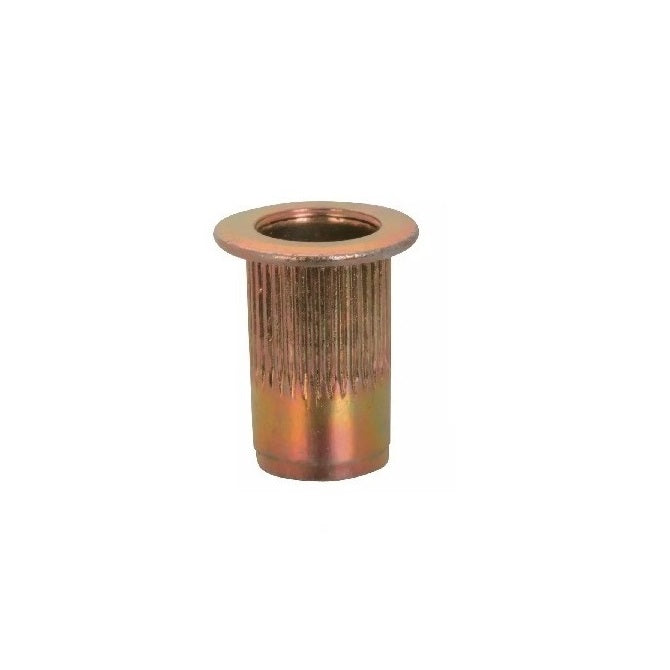

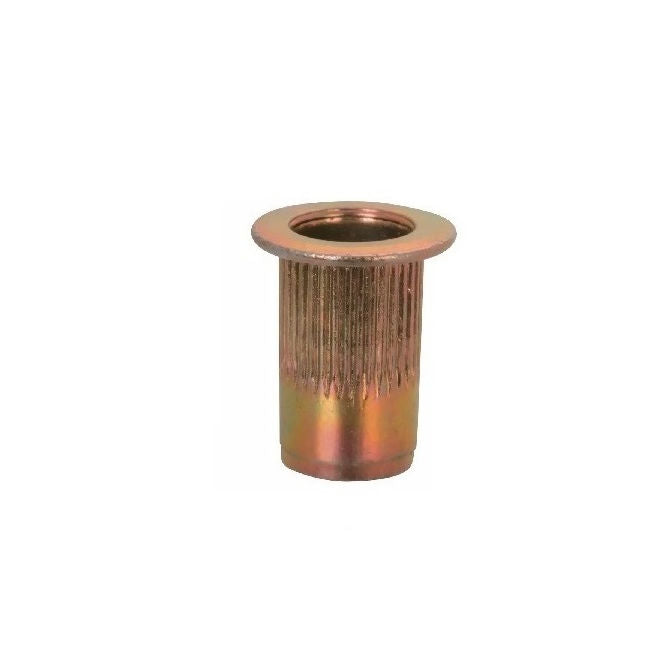

Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Product Data

  • Internal Thread : 1/4-20 UNC (6.35mm)
  • Drill Hole Size 9.92 mm
    (Equiv. 0.391 in.)
  • Grip Range 4.19 - 6.61 mm
    (Equiv. 0.165 in.)

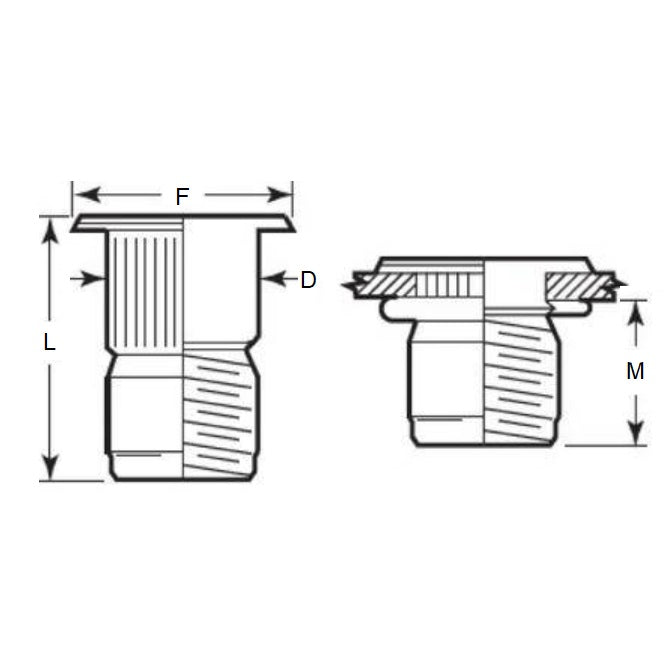

  • Body Diameter (D) 9.91 mm
  • Flange Diameter (F) 12.7 mm
  • L 17.577 mm
  • M 9.017 mm
  • 4.19 - 6.61
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 95105A147
  • ALC-47354
  • ALC47354
