IN-PF-064C-143-W - Datasheet
MBA
Category Information

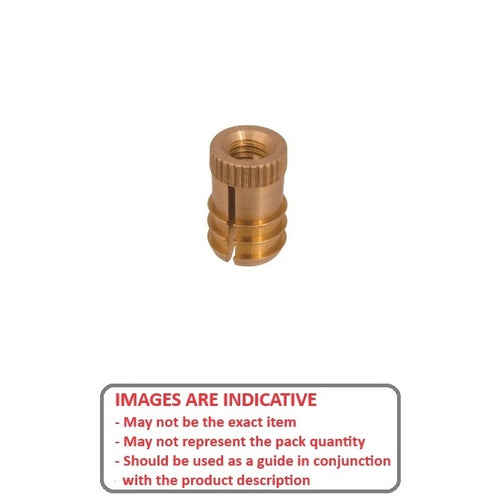

Inserts - Tapered Fit Finserts For Wood and PlasticsTapered Fit Finserts For Wood and Plastics Inserts. Finserts provide strong metal threads in wood, composition board and thermoplastics such as nylon, polystyrene, cellulose acetate and cycolac. By distributing stress over a greater surface area, firm permanent fastening is ensured.
- The fins give higher holding strength in softer materials
- Available with one, two or three fins for varying material thickness
- Finserts prevent splintering, splitting and thread pullout.
Product Data
- Internal Thread : 1/4-20 UNC (6.35mm)
- Hole Size
10.31
mm
(Equiv. 0.406 in.) - Length
10.947
mm

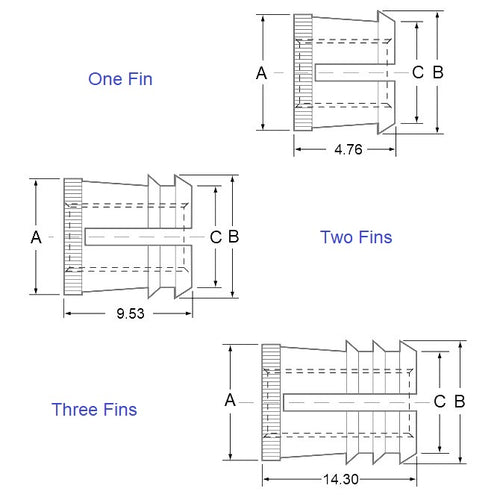

(Equiv. 0.431 in.) - A 10.389 mm
- B 10.947 mm
- C 9.677 mm
- Number of Fins 3
