GP3-0120-0600-BO - Datasheet

MBA

Category Information

Pins - Groove

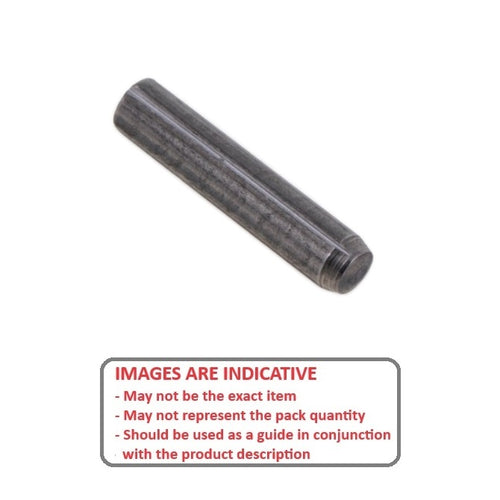

Groove Pins. Non threaded press fit fastener that doesn't require a reamed hole as do dowel pins.Commonly used in place of taper pins.

  • An expanded range may be available on special order. Please enquire.
  • An economic method of fastening without the need for precision drilled and reamed holes.
  • Recommended hole tolerance is H11.
  • Total length may be slightly longer than the nominal length.
  • Expanded portion of the pin is compressed into the hole a few thousands of an inch wider than the nominal pin diameter. Radial forces lock the pin securely into the drilled hole.

Product Data

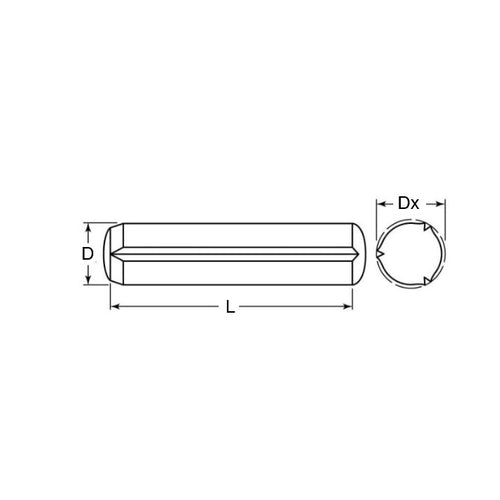

  • Nominal Diameter (D) : 1.200 mm + 0.00 / - 0.025
    (Equiv. 0.047 in.)
  • Length (L) 6.000 mm
    (Equiv. 0.236 in.)
  • Expanded. Dia [min / max] (Dx) 1.25 mm
    (Equiv. 0.049 in.)
  • Type GP3 - DIN 1473
  • Material Black Oxide Steel
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • Misumi SPRINGPINFC-ST-D1.2-6
  • SPRINGPINFCSTD126
