PLST-127C-284-HLCL-022 - Datasheet

MBA

Category Information

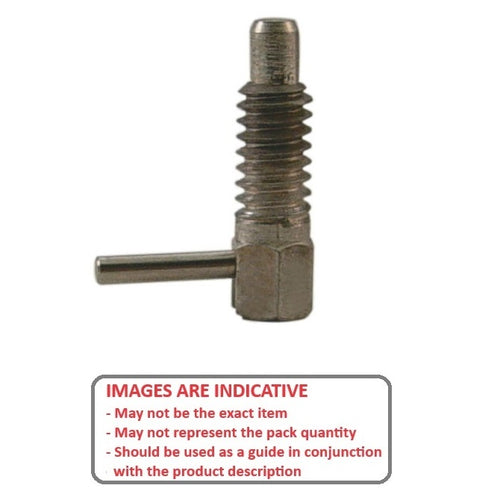

Plungers - Spring - L Handle - Locking - Steel

Steel Locking L Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Handle locks in slot when nose is extended

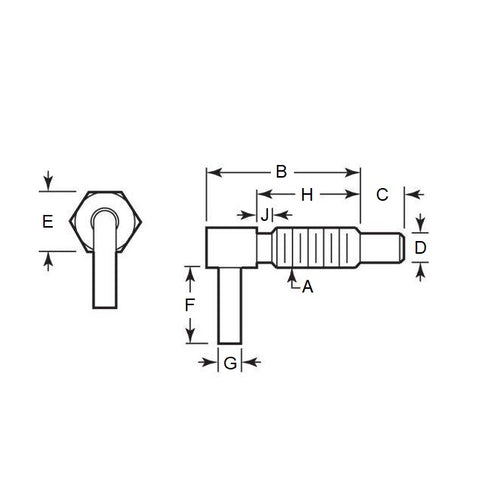

Product Data

  • Thread Size (A) : 1/2-13 UNC (12.7mm)
  • Thread Length (B) 28.4 mm
  • Initial Pressure (F1) Hand Retractable N
  • Final Pressure (F2) Hand Retractable N
  • Tip Diameter (D) 7.9 mm
  • Tip Length (C) 19.1 mm
  • Body Length (B) 53.6 mm
  • Handle Diameter (G) 4.8 mm
  • Handle Length (F) 25.4 mm
  • J 3.3
  • Material Steel
Country of Origin: US
