Plungers - Spring - L Handle - Locking - Stainless-Phenolic

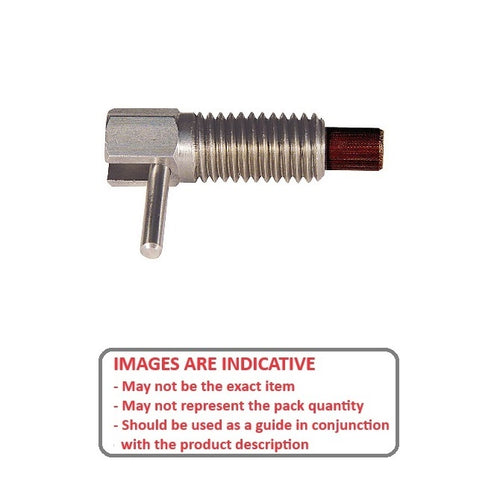

Stainless-Phenolic Locking L Handle Spring Plungers. Stainless body with phenolic nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

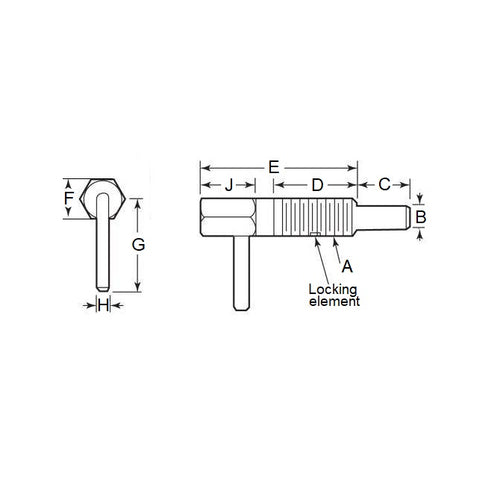

  • Thread Size (A) : 1/2-13 UNC (12.7mm)
  • Thread Length (D) 28.6 mm
    (Equiv. 1.126 in.)
  • Initial Pressure (F1) 4.5 N
  • Final Pressure (F2) 22.2 N
  • Tip Diameter (B) 7.9 mm
  • Tip Length (C) 19.1 mm
  • Handle Length (G) 31.8 mm
  • Handle Diameter (H) 4.8 mm
  • Head Length (J) 12.7 mm
  • Material Stainless Steel Body with Phenolic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • FR-7
