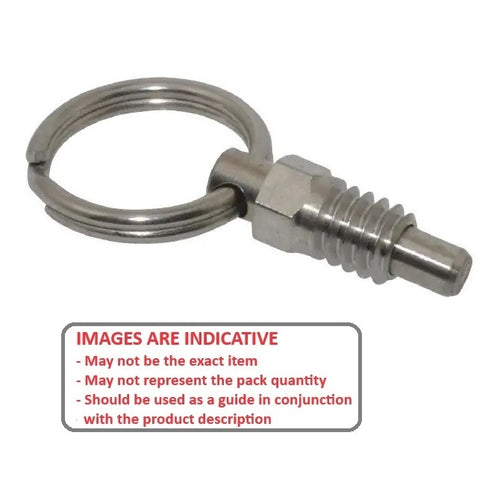

PLST-127C-206-RC-018 - Datasheet

MBA

Category Information

Plungers - Spring - Ring Handle - Non Locking - Steel

Steel Non Locking Ring Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

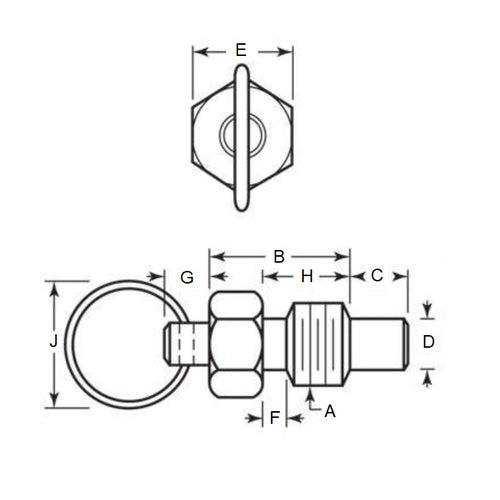

  • Thread Size (A) : 1/2-13 UNC (12.7mm)
  • Thread Length (B) 10.9 mm
    (Equiv. 0.429 in.)
  • Initial Pressure (F1) 4.5 N
  • Final Pressure (F2) 17.8 N
  • Tip Diameter (D) 7.9 mm
  • Tip Length (C) 9.7 mm
  • Body Length (B) 20.6 mm
  • Across Flats (E) 12.7 mm
  • F 3.3 mm
  • G 6.4 mm
  • Thread Length (H) 14.2 mm
  • Ring Diameter (J) 25.4
  • Material Steel
Country of Origin: US
