PLST-127C-254-HSL-008 - Datasheet

MBA

Category Information

Plungers - Spring - Acetal Handle - Locking - Stainless

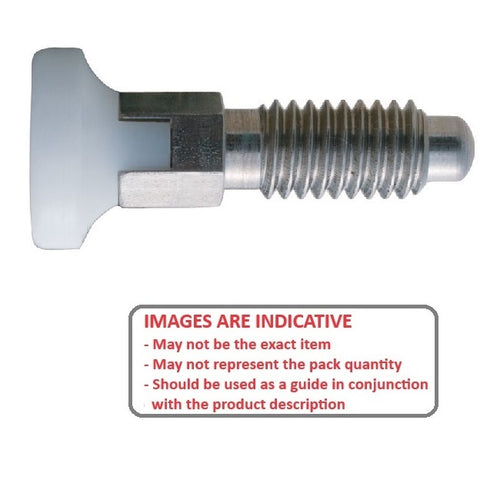

Stainless Locking Acetal Handle Spring Plungers. White acetal plastic handle . 303 stainless steel body and plunger.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

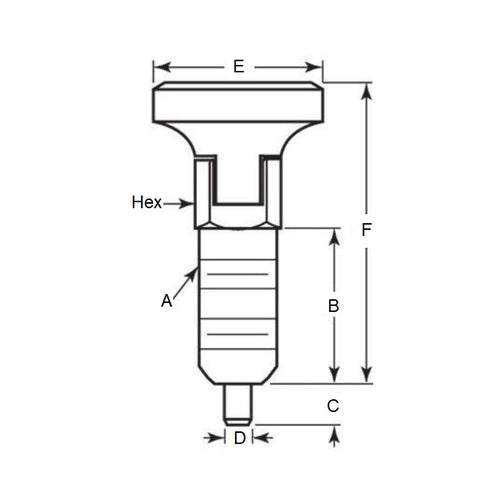

Product Data

  • Thread Size (A) : 1/2-13 UNC (12.7mm)
  • Thread Length (B) 25.4 mm
    (Equiv. 1 in.)
  • Initial Pressure (F1) 2.2 N
  • Final Pressure (F2) 7.8 N
  • Tip Diameter (D) 7.9 mm
  • Tip Length (C) 6.4 mm
  • Head Diameter (E) 25.4 mm
  • Overall Length (F) 48.3
  • Hex 12.7
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PRT-28
  • PRT28
