PLST-127C-318-PC-037 - Datasheet
MBA
Category Information

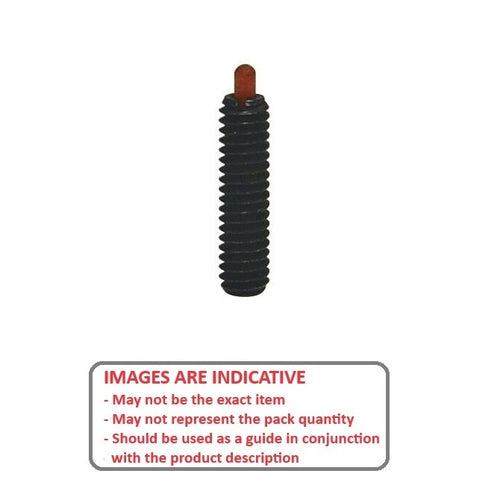

Plungers - Spring - No Handle - Steel - Plastic NosePlastic Nose Steel No Handle Spring Plungers. Plastic nose with steel body
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

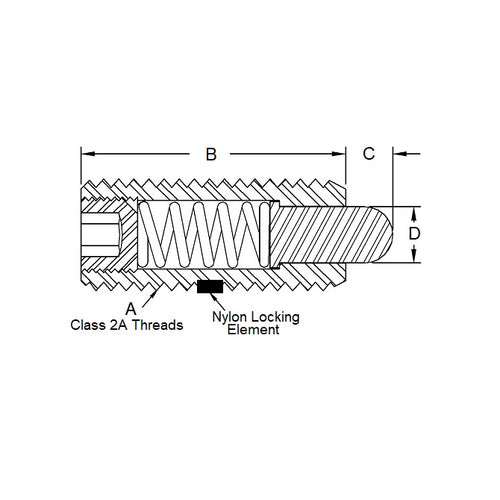

Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Thread Length (B)
31.8
mm
(Equiv. 1.252 in.) - Initial Pressure (F1) 13.1 N
- Final Pressure (F2) 36.7 N
- Tip Diameter (D) 6.3 mm
- Tip Length (C) 6.4 mm
- Body Length (B) 31.8 mm
- Drive Hex
- Material Steel Body with Plastic
Product Compliance and Data
Additional Resources
Cross References
- LPN6
- LPN-6
