PLST-127C-318-AC-041 - Datasheet

MBA

Category Information

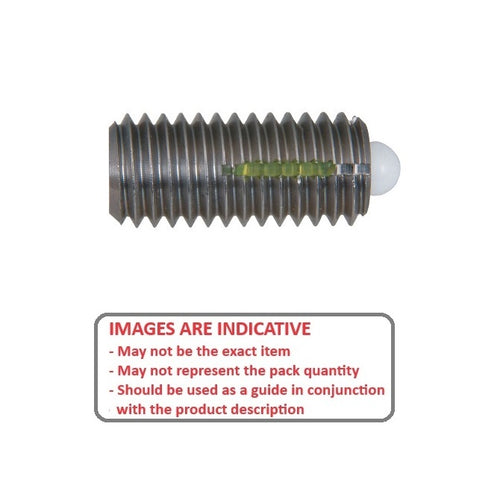

Plungers - Spring - No Handle - Steel - Acetal Nose

Acetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

  • Thread Size (A) : 1/2-13 UNC (12.7mm)
  • Thread Length (B) 31.8 mm
    (Equiv. 1.252 in.)
  • Initial Pressure (F1) 12.0 N
  • Final Pressure (F2) 41.4 N
  • Tip Diameter (D) 6.3 mm
  • Tip Length (C) 6.4 mm
  • Body Length (B) 31.8 mm
  • Drive Hex
  • Material Steel Body with Acetal Nose
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 2467A26
  • LDN6
  • LDN-6
