Dual Vee - Adaptor BushingsAdaptor Bushings Dual Vee. Vee grooved track roller bushings.
- Stationary bushings have a concentric hole
- Adjustable bushings have an eccentric hole allowing positioning of the guide wheel as the bush is turned

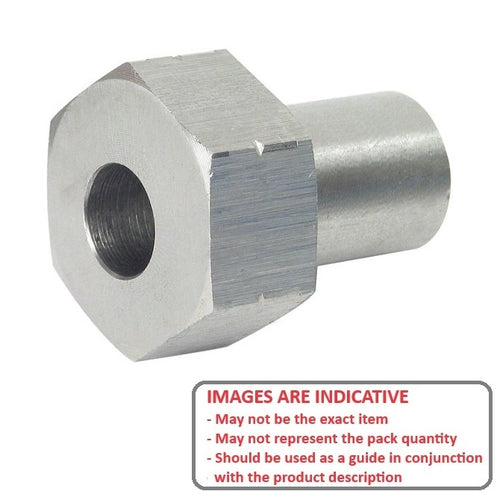

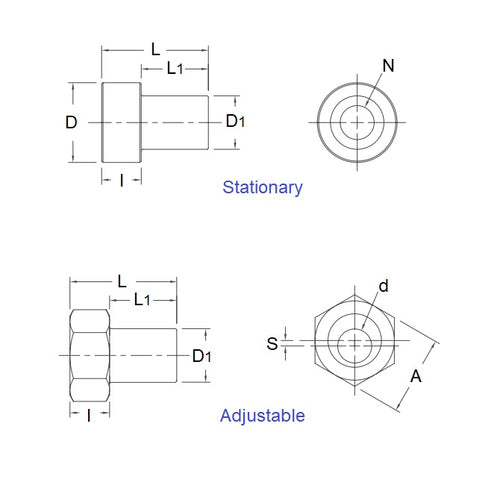

Product Data
- Bushing Size : 1
- Overall Length (L)
14.000
mm
+ 0.000 / - 0.030
(Equiv. 0.551 in.) - Head Width (l)
6.220
mm
+/ - 0.03
(Equiv. 0.245 in.) - Shank Diameter (D1) 4.760 mm + 0.000 / - 0.030
- Diameter / Hex (D or A) 12.000 mm
- Inside Diameter (N or d) 3.505 mm + 0.050 / - 0.000
- Offset Value (s) 0.180 mm
- Bush Type Adjustable
- Head Configuration Hexagon
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Dual Vee B1X-SS
- B1XSS
