DS-2RS - Datasheet
MBA
Category Information

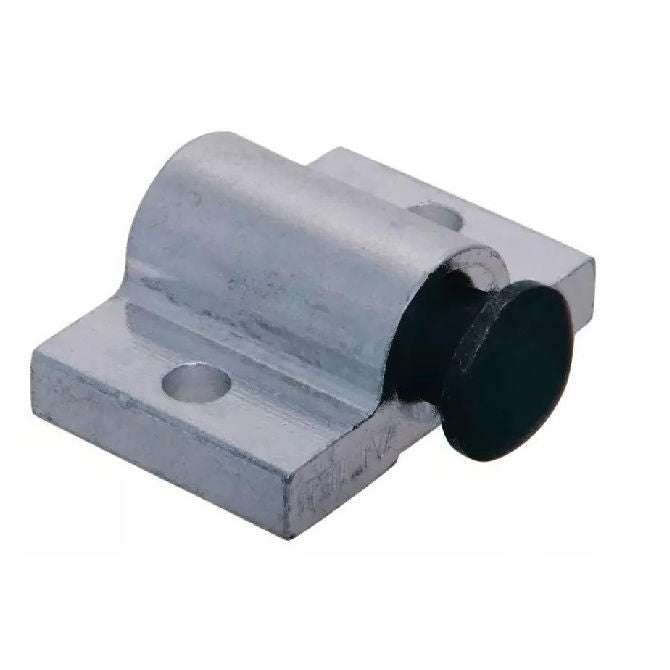

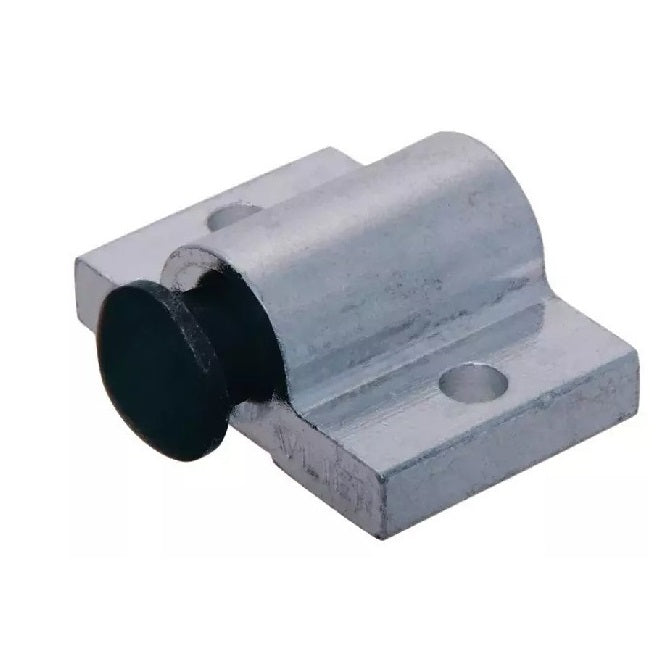

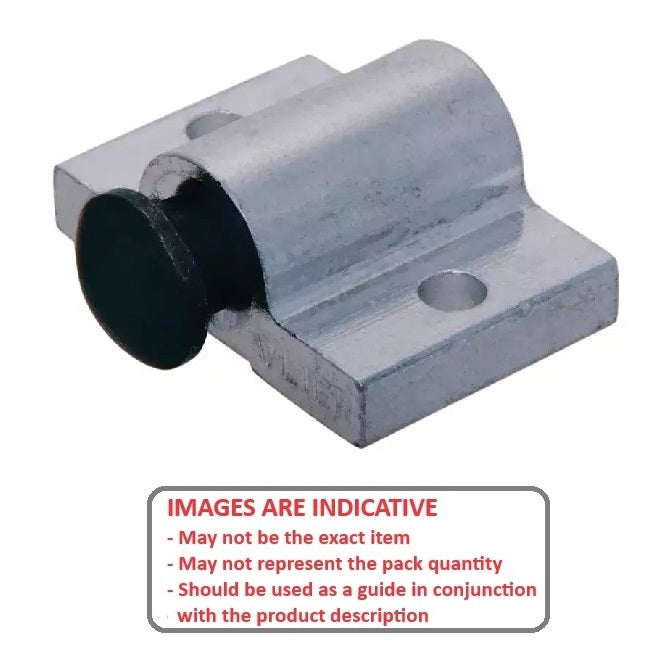

Stops - Spring - Round - Steel NoseSteel Nose Round Spring Stops. Round steel nose selection.
- Spring stops are used extensively in the locating of parts in jigs and fixtures, particularly where fixture walls are not available.
- Properly radiused nose for perfect fit with no wobble.
- Plunger is case hardened low carbon steel. Aluminium body.
Product Data
- Initial End Force : 1.02 Kg
- Final End Force 11.68 Kg

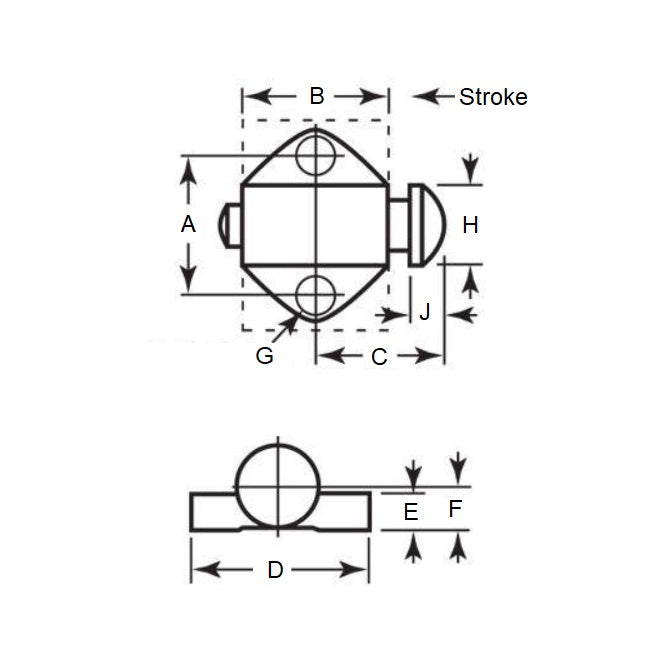

- A 28.58 mm
- B 25.40 mm
- C 22.23 mm
- D 38.10 mm
- F 7.94 mm
- G 5.16 mm
- H 14.29 mm
- E / J 6.35 / 4.76 mm
- Base Style Retangular
