Retaining Rings - Internal - Round Wire

Round Wire Internal Retaining Rings. Includes DIN7993B / RB / M1700 / BN826. Retaining rings. Snap Rings (USA). Round section circlips.

  • An expanded range may be available on special order. Please enquire.
  • Round section wire rings are mostly used in semicircular grooves.
  • Applications include gear systems, automotive engineering and open gudgeon pins.

Product Data

  • Housing Bore (B) : 24.00 mm
    (Equiv. 0.945 in.)
  • Clip Thickness (T) 1.8 mm + 0.08 / - 0.04
    (Equiv. 0.071 in.)
  • Groove Dia. (Dg) 26.11 mm Min.
    (Equiv. 1.028 in.)
  • Approx. Loose Circlip OD (Dr) 27.00 mm
  • Groove Width (W) 1.90 + 0.08 / - 0.00
  • Free Inside Diameter (D) 23.4
  • Info DIN7993
  • Section Profile Round Section
  • Groove Radius (r) 0.95 mm
  • Gap (g) 10.000 mm
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor D17-024
  • AMC RB-024
  • Seeger RB-024
  • RB024
  • D17024
View full details

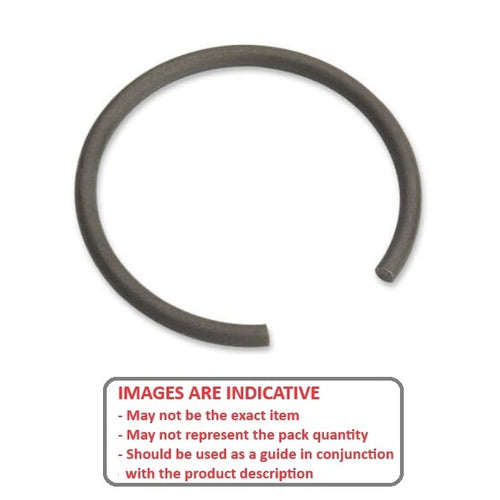

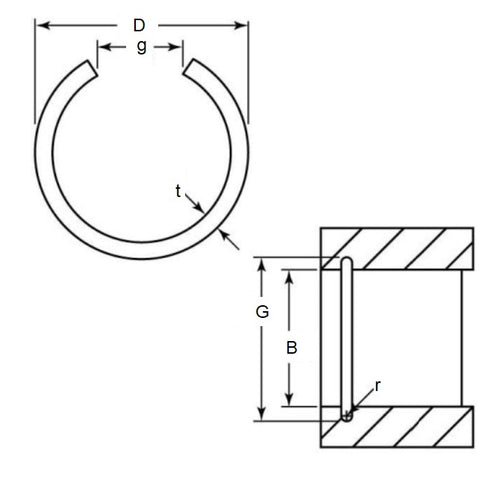

WRI-0240A-RDDiagramWRI-0240A-RDImage
