WRE-0950-RD - Datasheet
MBA
Category Information

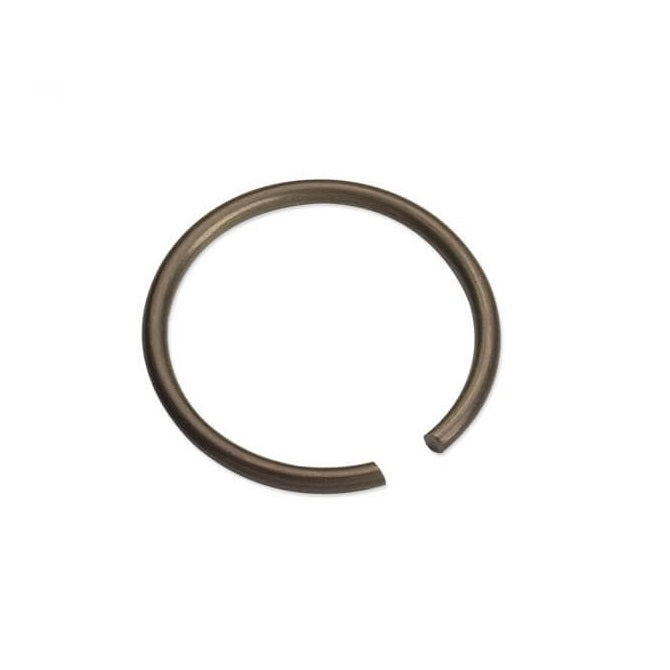

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
- Shaft Diameter (Ds)
:
95.00
mm
(Equiv. 3.74 in.) - Clip Thickness (T)
3.20
mm
(Equiv. 0.126 in.) - Groove Dia. (Dg)
91.65
mm
+ 0 / - 1.00
(Equiv. 3.608 in.) - Approx. Loose Circlip ID (A) 91.0 mm
- Radial Wall (S) min/max 91.65 mm +/- 0.15
- Groove Width (W) 3.6 mm Min.
- Free Outside Dia (Dr) 97.4
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DRP-095
- DRP095
