WRE-0762-RD-HO - Datasheet
MBA
Category Information

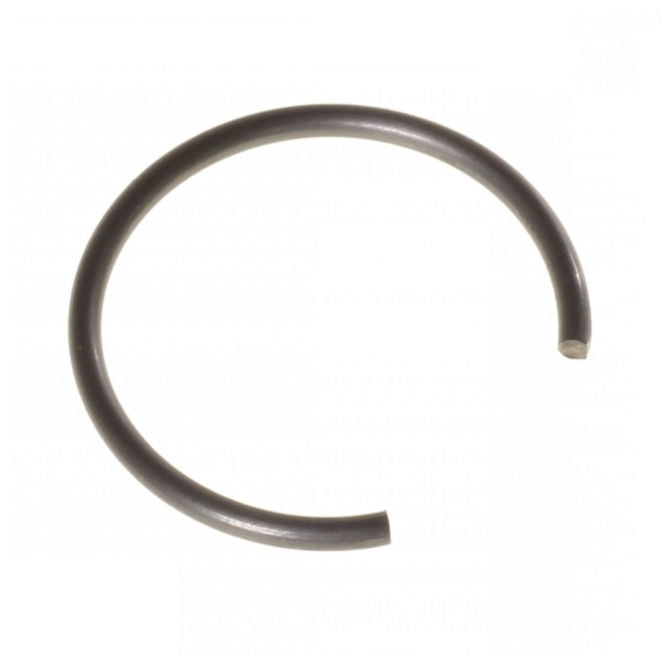

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
- Shaft Diameter (Ds)
:
76.20
mm
(Equiv. 3 in.) - Clip Thickness (T)
6.35
mm
+/- 0.06
(Equiv. 0.25 in.) - Groove Dia. (Dg)
72.24
mm
+ /- 0.10
(Equiv. 2.844 in.) - Approx. Loose Circlip ID (A) 71.53 mm
- Radial Wall (S) min/max 72.24 mm
- Groove Width (W) 6.40 mm
- Free Outside Dia (Dr) 84.23
- Section Profile Round Section
- Info Radial Assembly - Open Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 200-467
- Arcon XRO-467
- NoCor XRO-467
- 200467
- WRE0762SRHO
- XRO467
