WRE-0572-RD-O - Datasheet
MBA
Category Information

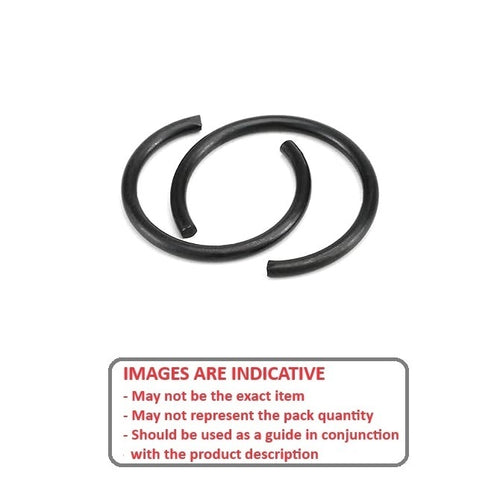

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data

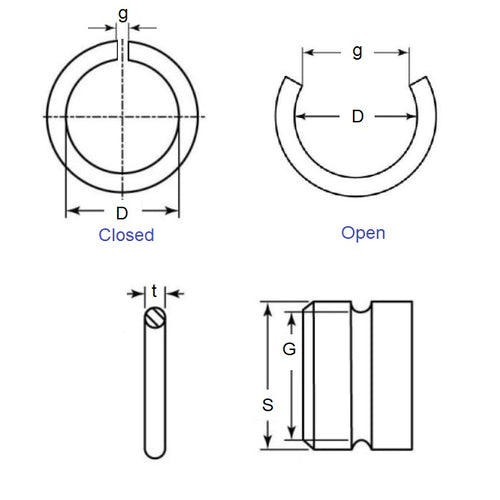

- Shaft Diameter (Ds)
:
57.15
mm
(Equiv. 2.25 in.) - Clip Thickness (T)
5.16
mm
+/- 0.06
(Equiv. 0.203 in.) - Groove Dia. (Dg)
53.95
mm
+ /- 0.10
(Equiv. 2.124 in.) - Approx. Loose Circlip ID (A) 53.42 mm
- Radial Wall (S) min/max 53.95 mm
- Groove Width (W) 5.21 mm
- Free Outside Dia (Dr) 63.74
- Section Profile Round Section
- Info Radial Assembly - Open Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 200-462
- Arcon XRO-462
- NoCor XRO-462
- 200462
- XRO462
- WRE0572SRO
