WRE-0445-RD-O - Datasheet
MBA
Category Information

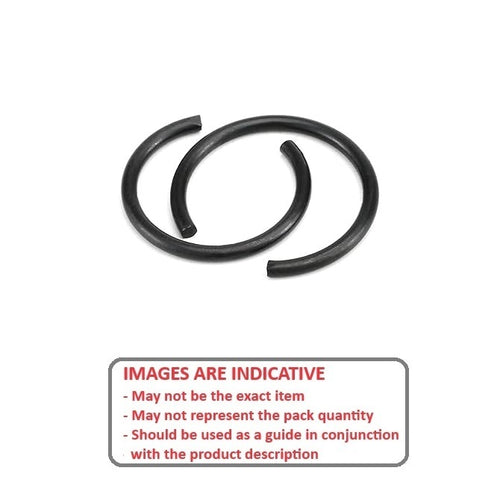

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data

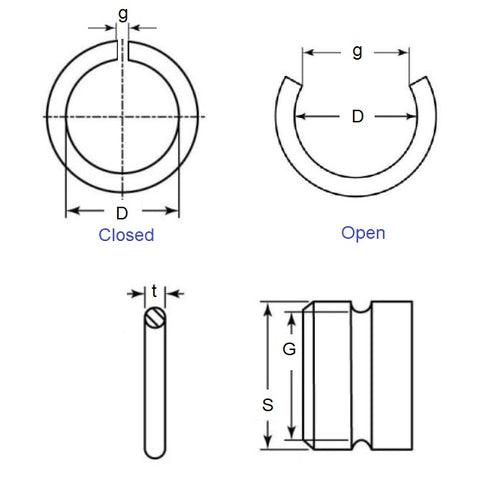

- Shaft Diameter (Ds)
:
44.45
mm
(Equiv. 1.75 in.) - Clip Thickness (T)
4.37
mm
+/- 0.06
(Equiv. 0.172 in.) - Groove Dia. (Dg)
41.71
mm
+ /- 0.08
(Equiv. 1.642 in.) - Approx. Loose Circlip ID (A) 41.30 mm
- Radial Wall (S) min/max 41.71 mm
- Groove Width (W) 4.42 mm
- Free Outside Dia (Dr) 50.04
- Section Profile Round Section
- Info Radial Assembly - Open Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 200-458
- Arcon XRO-458
- NoCor XRO-458
- 200458
- XRO458
- WRE0445SRO
