WRE-0039-RD - Datasheet
MBA
Category Information

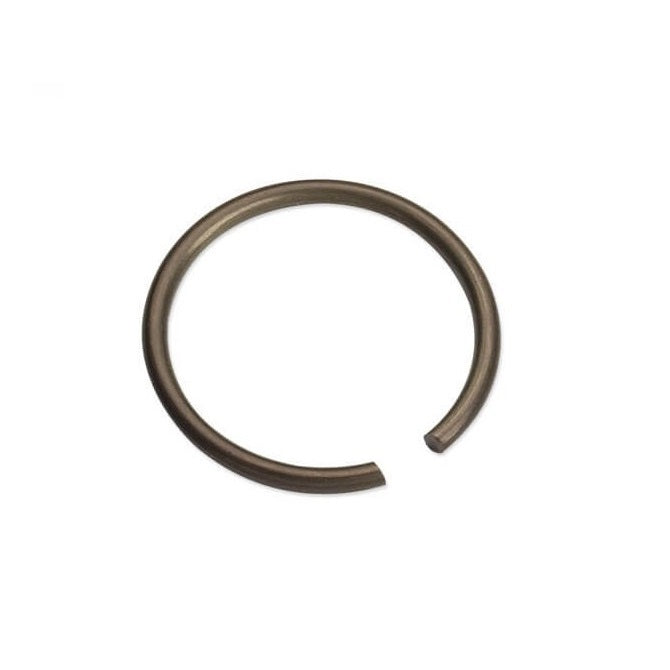

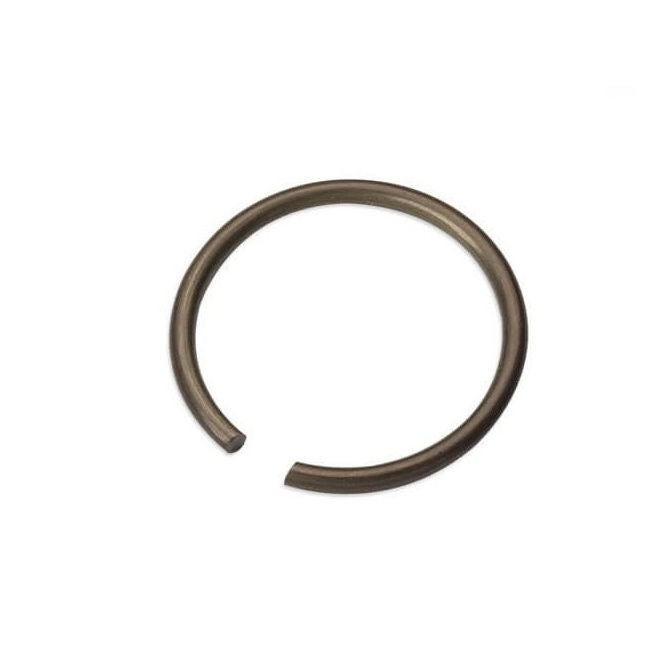

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
- Shaft Diameter (Ds)
:
3.96
mm
(Equiv. 0.156 in.) - Clip Thickness (T)
0.32
mm
(Equiv. 0.013 in.) - Groove Dia. (Dg)
3.63
mm
(Equiv. 0.143 in.) - Approx. Loose Circlip ID (A) 3.51 mm
- Radial Wall (S) min/max 3.63 mm + 0.08 / - 0.00
- Groove Width (W) 0.33 mm + 0.08 / - 0.00
- Free Outside Dia (Dr) 4.15
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor A10-015
- A1000-015
- A1000015
- A10015
