Category Information

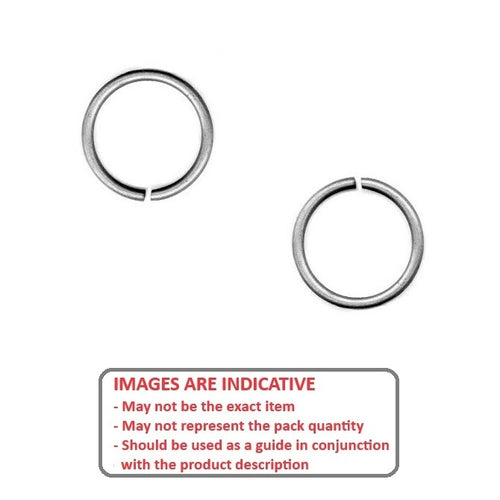

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data

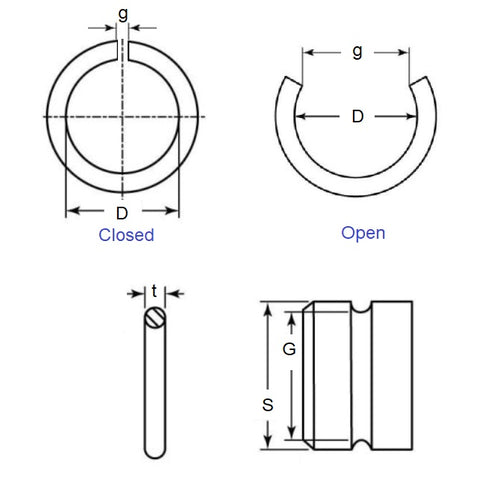

- Shaft Diameter (Ds)
:
28.58
mm
(Equiv. 1.125 in.) - Clip Thickness (T)
3.30
mm
+/- 0.06
(Equiv. 0.13 in.) - Groove Dia. (Dg)
26.54
mm
+ /- 0.08
(Equiv. 1.045 in.) - Approx. Loose Circlip ID (A) 26.26 mm
- Radial Wall (S) min/max 26.54 mm
- Groove Width (W) 3.35 mm
- Free Outside Dia (Dr) 32.86
- Section Profile Round Section
- Info Axial Assembly - Closed Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 100-343
- Arcon XRC-343
- NoCor XRC-343
- XRC343
- 100343
- A0900343
- A0900-343
