WRE-0238-RD-C - Datasheet
MBA
Category Information

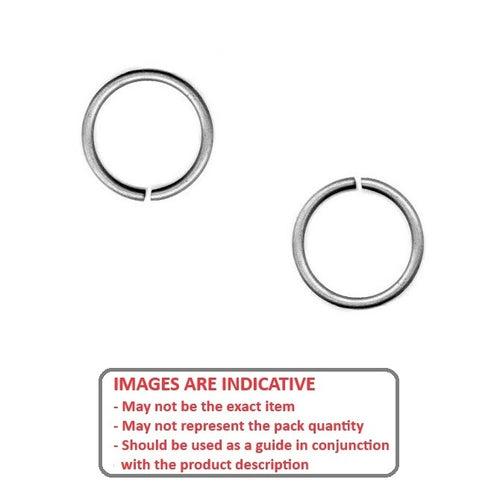

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.

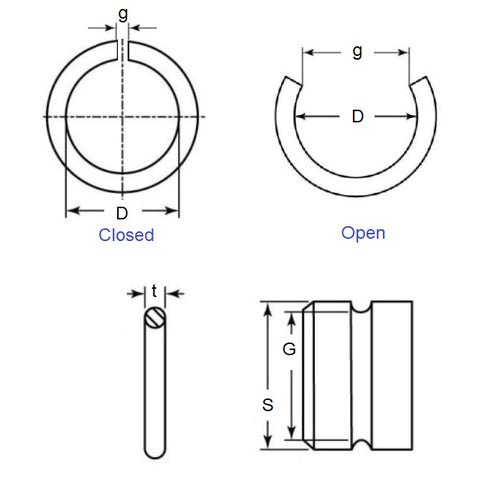

Product Data
- Shaft Diameter (Ds)
:
23.83
mm
(Equiv. 0.938 in.) - Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.) - Groove Dia. (Dg)
22.68
mm
+ /- 0.08
(Equiv. 0.893 in.) - Approx. Loose Circlip ID (A) 22.48 mm
- Radial Wall (S) min/max 22.68 mm
- Groove Width (W) 1.85 mm
- Free Outside Dia (Dr) 26.08
- Section Profile Round Section
- Info Axial Assembly - Closed Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 100-336
- Arcon XRC-336
- NoCor XRC-336
- XRC336
- 100336
- A0900-336
- A0900336
