Category Information

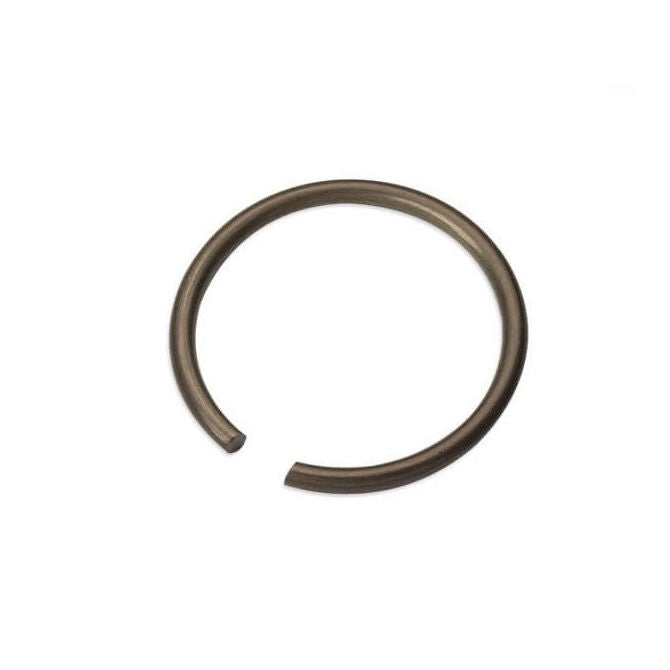

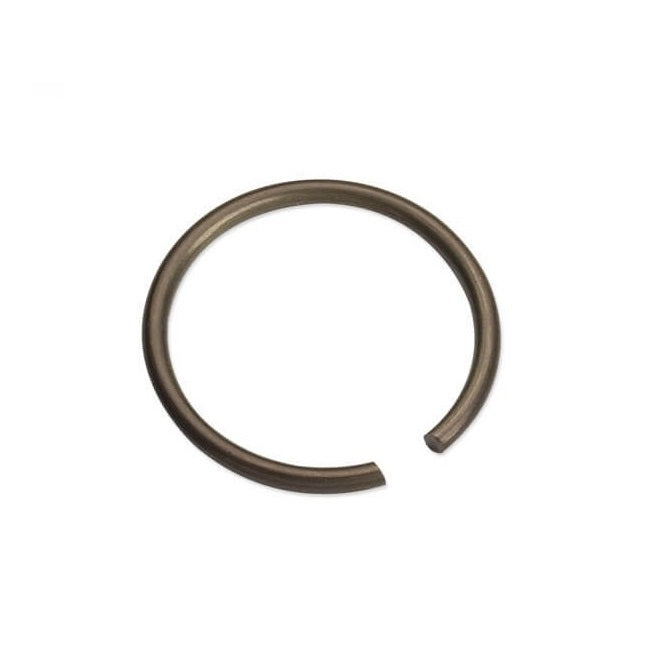

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data
- Shaft Diameter (Ds)
:
2.11
mm
(Equiv. 0.083 in.) - Clip Thickness (T)
0.23
mm
(Equiv. 0.009 in.) - Groove Dia. (Dg)
1.85
mm
(Equiv. 0.073 in.) - Approx. Loose Circlip ID (A) 1.83 mm
- Radial Wall (S) min/max 1.85 mm + 0.08 / - 0.00
- Groove Width (W) 0.25 mm + 0.08 / - 0.00
- Free Outside Dia (Dr) 2.29
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor A10-008
- A10008
- A1000008
- A1000-008
