WRE-0143-RD-C - Datasheet
MBA
Category Information

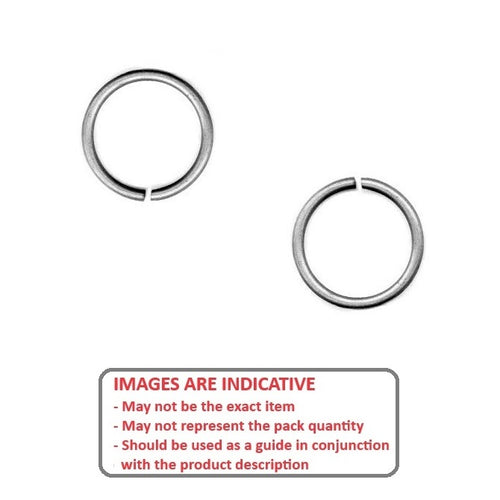

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data

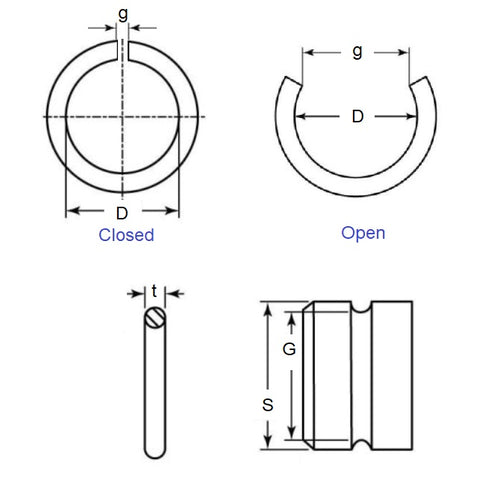

- Shaft Diameter (Ds)
:
14.28
mm
(Equiv. 0.562 in.) - Clip Thickness (T)
1.14
mm
+/- 0.06
(Equiv. 0.045 in.) - Groove Dia. (Dg)
13.56
mm
+ 0.08 / - 0.00
(Equiv. 0.534 in.) - Approx. Loose Circlip ID (A) 13.44 mm
- Radial Wall (S) min/max 13.56 mm
- Groove Width (W) 0.43 mm
- Free Outside Dia (Dr) 15.72
- Section Profile Round Section
- Info Axial Assembly - Closed Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 100-324
- Arcon XRC-324
- NoCor XRC-324
- XRC324
- 100324
- A0900-324
- A0900324
