SUG-501RS - Datasheet

MBA

Category Information

Catches - Rotary

Rotary Catches. Polyacetal catch and strike with polyethylene rollers. Ideal in corrosive environments.

    Product Data

    • Colour : White
    • Catch Length (A) 31.35 mm
    • Catch Width (B) 14 mm
    • Overall Width (C) 27.2 mm
    • Overall Height (D) 12.6 mm
    • Strike Width (E) 9 mm
    • F 2.29 mm
    • Mounting Hole Distances (C1) 24.4 mm
    • Mounting Hole Centres (C2) 7.5 mm
    • Strike Width (G) 32 mm
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

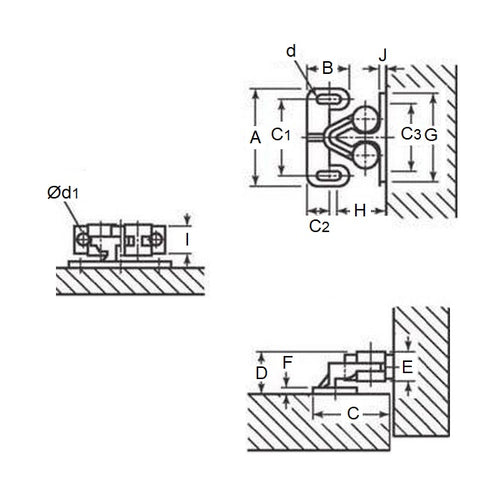

      SUG-501RSDiagramSUG-501RSImage
