W0990-T-105-055-W6-C-ECO - Datasheet

MBA

Category Information

Washers - Spring - Wave - Carbon Steel

Carbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.

  • Spring washers are available in many different materials and types, including curved and waved series.
  • They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
  • An expanded range may be available on special order. Please enquire.
  • This category includes EPL type bearing pre-load washers.

Product Data

  • Nominal Inside Diameter (d) : 98.00 mm + 0.1 / + 1.2
    (Equiv. 3.858 in.)
  • Nominal Outside Diameter (D) 105.00 mm - 0.1 / - 1.2
    (Equiv. 4.134 in.)
  • Nom. Height (H) 5.50 mm
    (Equiv. 0.217 in.)
  • Thickness (s) 0.60 mm
  • Info Suits OD of 6408, 6310, 6212, 6014. 6916, 6817 Bearings
  • Type 6 Wave
  • Nominal Screw Size M98, 3.3/4
  • Material Carbon Spring Steel Self Finish
Country of Origin: TW

Product Compliance and Data

Additional Resources

View full details

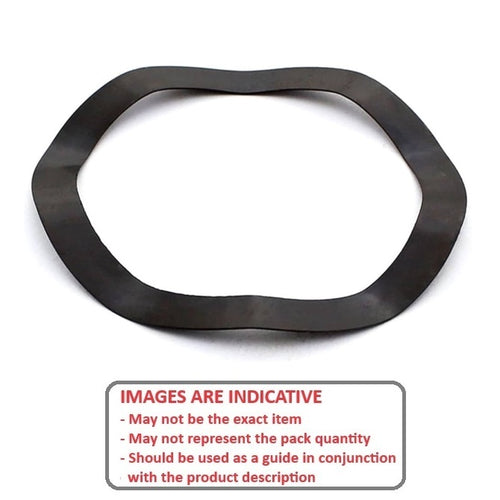

W0990-T-105-055-W6-C-ECODiagramW0990-T-105-055-W6-C-ECOImage
