W0700-T-079-060-W5-C-ECO - Datasheet
MBA
Category Information
Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.

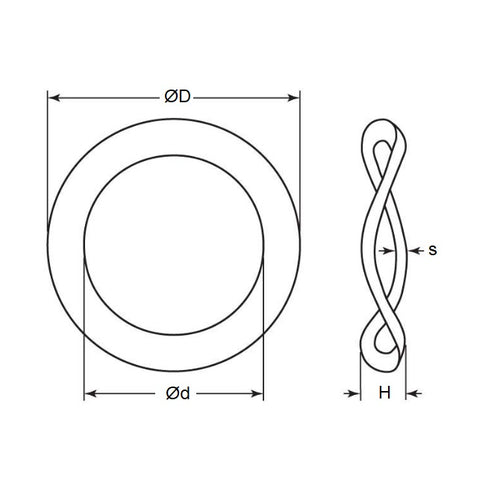

Product Data
- Nominal Inside Diameter (d)
:
70.00
mm
+ 0.1 / + 1.2
(Equiv. 2.756 in.) - Nominal Outside Diameter (D)
79.00
mm
- 0.1 / - 1.2
(Equiv. 3.11 in.) - Nom. Height (H)
6.00
mm
(Equiv. 0.236 in.) - Thickness (s) 0.60 mm
- Info Suits OD of 6405, 6307, 6208, 6010, 6911 Bearings

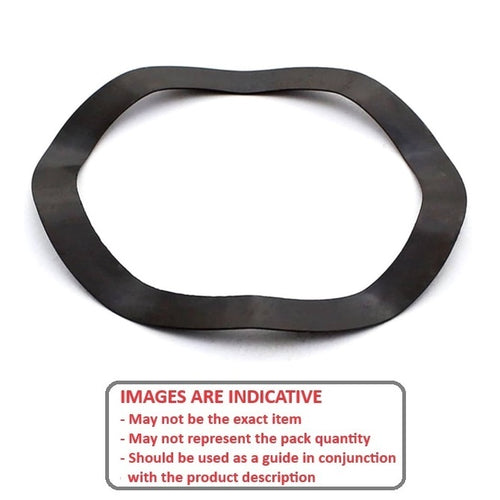

- Type 5 Wave
- Nominal Screw Size M70
- Material Carbon Spring Steel Self Finish
