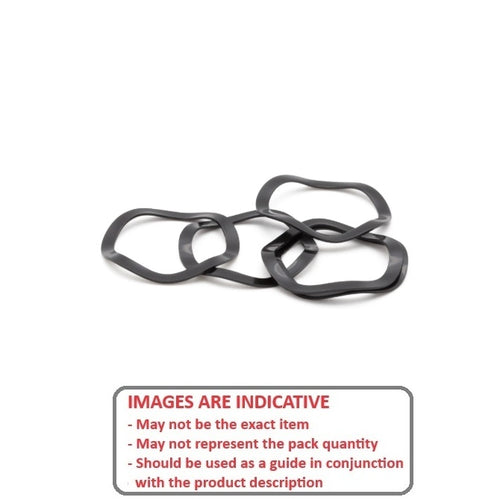

W0650-T-087-074-W4-C - Datasheet
MBA
Category Information
Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data
- Nominal Inside Diameter (d)
:
65.00
mm
-0.00 / +0.10
(Equiv. 2.559 in.) - Nominal Outside Diameter (D)
87.00
mm
-0.10 / +0.00
(Equiv. 3.425 in.) - Nom. Height (H)
7.40
mm
-0.12 / +0.00
(Equiv. 0.291 in.) - Thickness (s) 0.45 mm
- Info Suits OD of 6210, and 6308 Bearings
- Type 4 Wave
- Nominal Screw Size M65, 2.1/2
- Material Carbon Spring Steel
