W0056-T-009-015-W3-C - Datasheet
MBA
Category Information

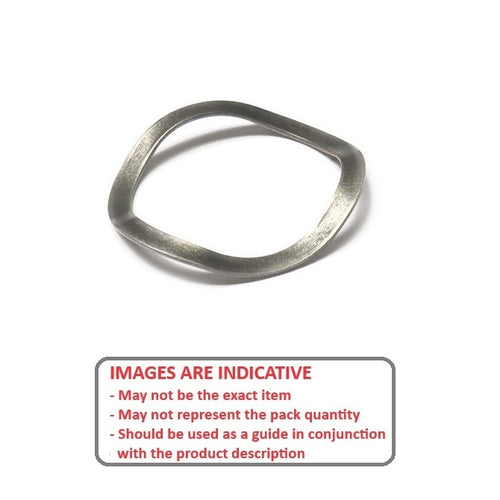

Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data
- Nominal Inside Diameter (d)
:
5.55
mm
+0.0 / +0.5
(Equiv. 0.219 in.) - Nominal Outside Diameter (D)
9.00
mm
+0.0 / -0.5
(Equiv. 0.354 in.) - Nom. Height (H)
1.50
mm

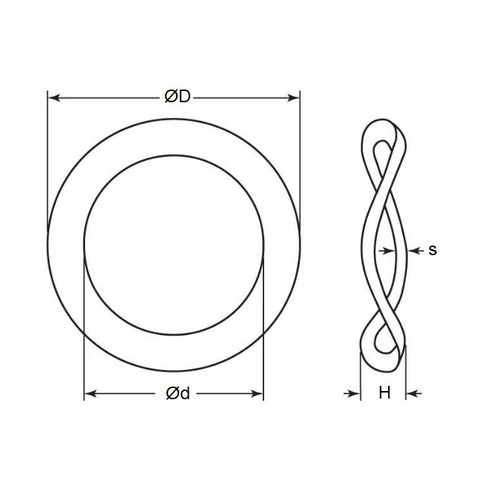

(Equiv. 0.059 in.) - Thickness (s) 0.30 mm
- Type 3 Wave
- Nominal Screw Size M5, 10-24, 10-32, 3/16
- Material Carbon Spring Steel - Phosphate Coated
Product Compliance and Data
Additional Resources
Cross References
- Misumi® WW-5
- Ochiai® WW-5
