W0400-T-051-038-W5-C-ECO - Datasheet
MBA
Category Information

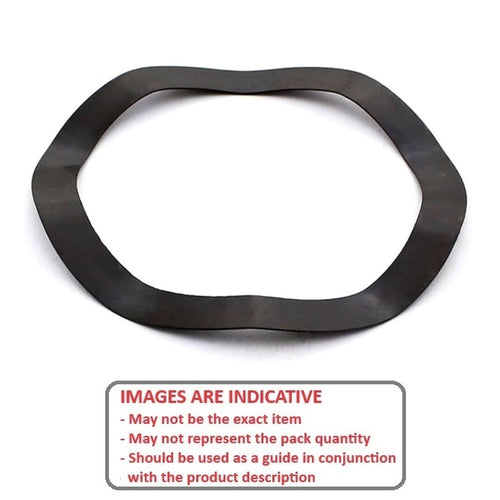

Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data
- Nominal Inside Diameter (d)
:
40.00
mm
+ 0.1 / + 1.2
(Equiv. 1.575 in.) - Nominal Outside Diameter (D)
61.00
mm
- 0.1 / - 1.0
(Equiv. 2.402 in.) - Nom. Height (H) 3.80 mm
- Thickness (s) 0.50 mm
- Info Suits OD of 6205, 6304, and 6402 Bearings (Similar To EPL044)
- Type 5 Wave
- Nominal Screw Size M40, 1.1/2
- Spring Rate 28 N/mm
- Load at Height 10.2 N at 1.5 mm Ref.
- Material Carbon Spring Steel Self Finish
