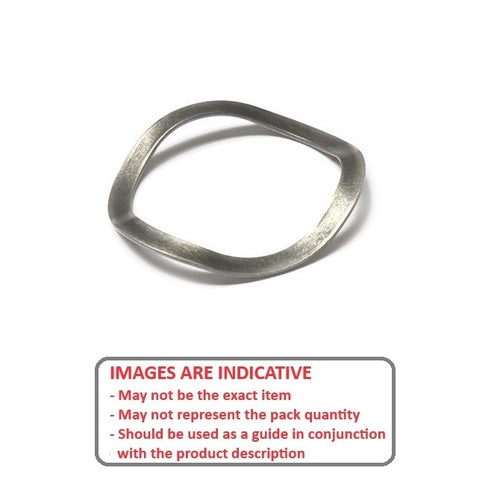

W0395-T-051-050-W3-C - Datasheet
MBA
Category Information
Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data

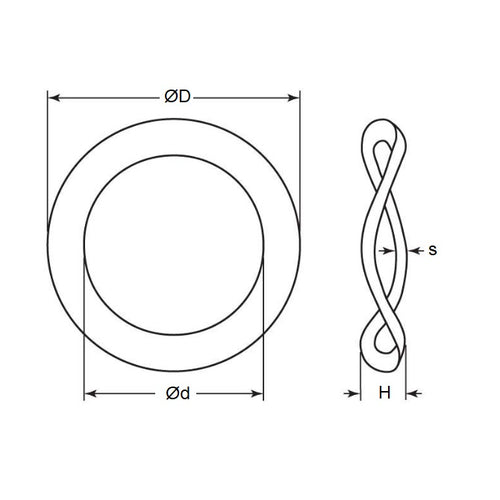

- Nominal Inside Diameter (d) : 39.50 mm
- Nominal Outside Diameter (D) 50.80 mm
- Nom. Height (H) 5.00 mm
- Thickness (s) 0.30 mm
- Type 3 Wave
- Nominal Screw Size M39, 1.1/2
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® W-38
- Ochiai® W-38
