W0210-T-028-035-W3-C-ECO - Datasheet
MBA
Category Information
Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.

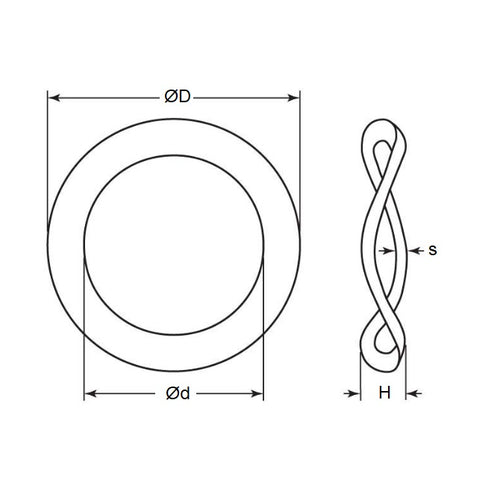

Product Data
- Nominal Inside Diameter (d)
:
21.00
mm
+ 0.1 / + 0.7
(Equiv. 0.827 in.) - Nominal Outside Diameter (D)
27.00
mm
- 0.1 / - 1.0
(Equiv. 1.063 in.) - Nom. Height (H)
3.50
mm
(Equiv. 0.138 in.) - Thickness (s) 0.30 mm
- Info Suits OD of 638, 6001, 6902, and R8 Bearings
- Type 3 Wave
- Nominal Screw Size M21
- Material Carbon Spring Steel Self Finish
