W1180-T-129-065-W6-C-ECO - Datasheet
MBA
Category Information

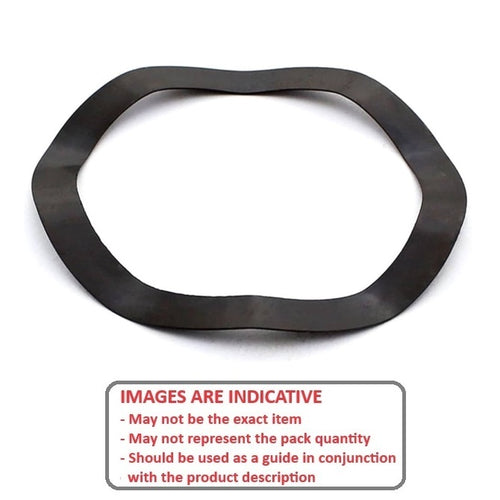

Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.

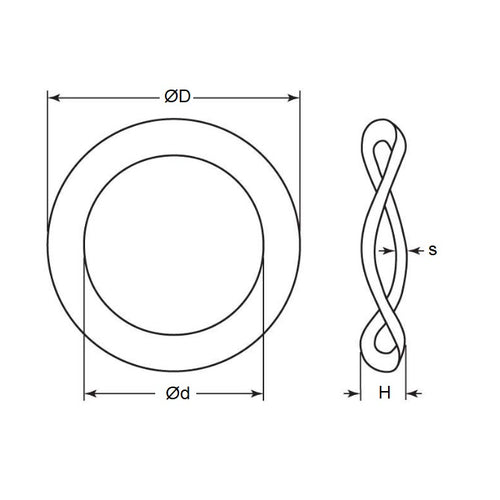

Product Data
- Nominal Inside Diameter (d)
:
118.00
mm
+ 0.1 / + 1.2
(Equiv. 4.646 in.) - Nominal Outside Diameter (D)
129.00
mm
- 0.1 / - 1.2
(Equiv. 5.079 in.) - Nom. Height (H)
6.50
mm
(Equiv. 0.256 in.) - Thickness (s) 0.60 mm
- Info Suits OD of 6410, 6312, 6215, 6919, 6821 Bearings
- Type 6 Wave
- Nominal Screw Size M118, 4.5/8
- Material Carbon Spring Steel Self Finish
