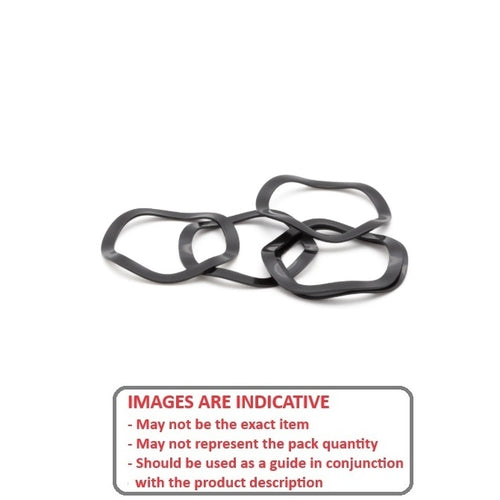

W1075-T-128-110-W3-C - Datasheet
MBA
Category Information
Washers - Spring - Wave - Carbon SteelCarbon Steel Wave Spring Washers. Cabon steel, 3, 4, and 5 wave selection. Also known as crinckle wave washers.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- This category includes EPL type bearing pre-load washers.
Product Data
- Nominal Inside Diameter (d)
:
107.50
mm
+0.8 / +1.5
(Equiv. 4.232 in.) - Nominal Outside Diameter (D)
128.30
mm
-0.4 / -1.1
(Equiv. 5.051 in.) - Nom. Height (H)
11.00
mm
(Equiv. 0.433 in.) - Thickness (s) 0.80 mm
- Info Suits OD of 6919, 6017, 6215, 6312, and 6410 Bearings
- Type 3 Wave
- Nominal Screw Size M100, 4 in.
- Material Carbon Spring Steel - Phosphate Coated
Product Compliance and Data
Additional Resources
Cross References
- Misumi® BWW-6312
- Ochiai® BWW-6312
