Category Information

Thread Gauge Tools. Thread gauges are used to identify screw threads. Our range includes male and female identifiers for use with nuts, screws, threaded rod etc.

Thread gauging tools for checking thread pitches.

Product Data

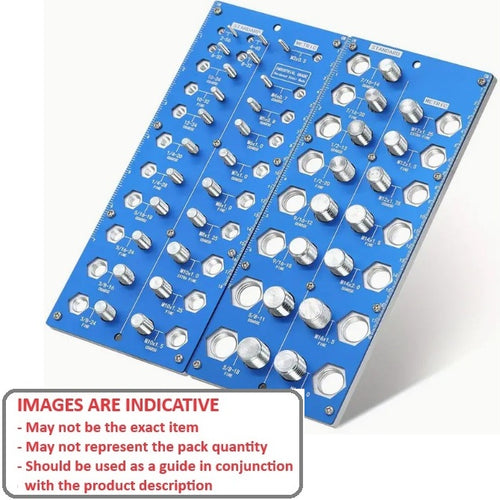

Description : Thread Checking Set
Info 38 Male and Female Threads - Imperial and Metric
Style Mounted on a freestanding board
Info 2-56, 4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24
Sizes 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18
Sizes M3, M4, M5, M6, M7, M8x1, M8x1.25, M10x1, M10x1.25, M10x1.5
Sizes M12x1.25, M12x1.5, M12x1.75, M14x1.5, M14x2, M16x1.5, M16x2

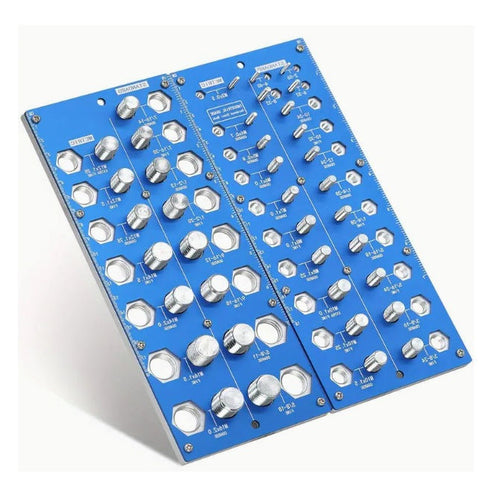

Package Contained on two aluminium boards each approx 10x26 cm
For Perfect for checking thread size on screws or nuts
Material Steel on Wood

Country of Origin: CN
