Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

AST-EZL-FS - Datasheet

MBA

Category Information

Thread Repair - Assortments - EZ Lok

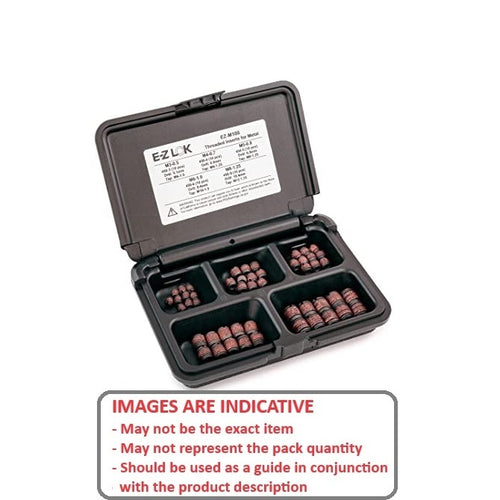

EZ Lok Assortments Thread Repair. Contains a selection of E-Z Lok inserts

  • Automatic self locking pressure activated adhesive on external thread.
  • Prevent or repair stripped threads
  • No special tools required
  • Install with a bolt and wrench
  • Metric, UNC and UNF

Product Data

  • Type : Imperial UNF
  • Description 5 Sizes 10-32 UNF to 1/2-20 UNF
  • Contents 10 each 10-32, 1/4-28, 5/16-24, 3/8-24, 6 of 1/2-20
  • Use In Ideal for soft metals, like aluminum, cast iron, and magnesium
  • Info Install with standard drills and taps
  • Material Steel Zinc Plated
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 90248A114
    • EZ-F108
    • EZF108
    View full details

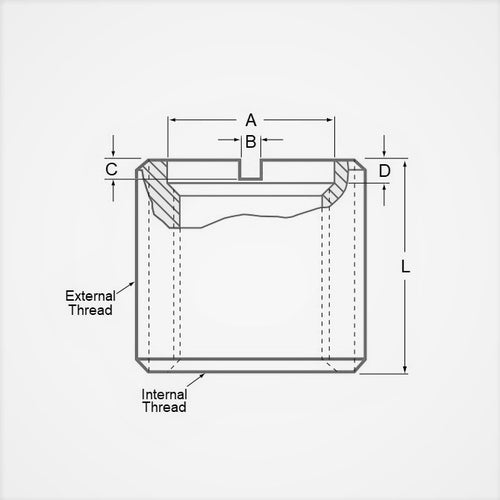

    AST-EZL-FSDiagramAST-EZL-FSImage
