CS-0305-0127-06-S6-G - Datasheet
MBA
Category Information

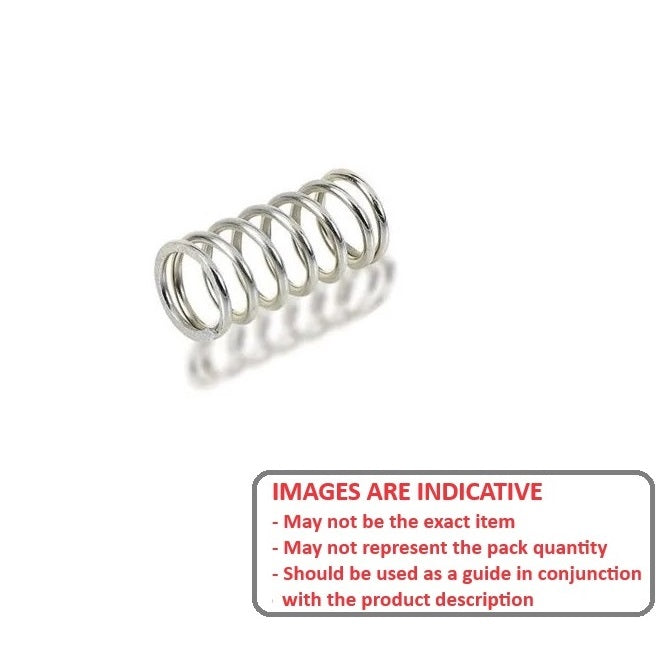

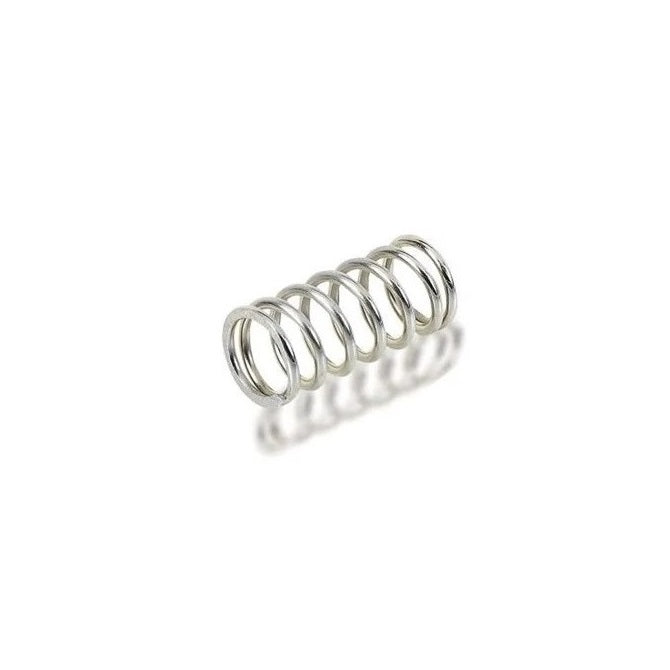

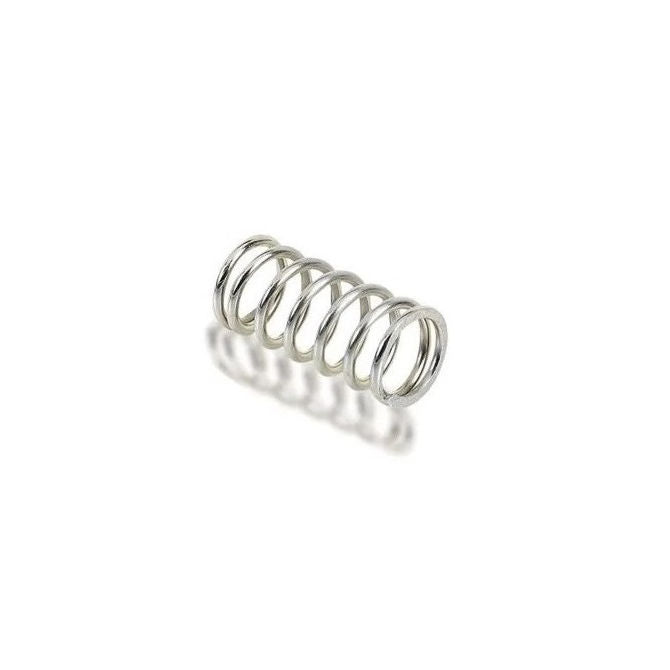

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
3.05
mm
+/- 0.127
(Equiv. 0.12 in.) - Free Length (L0)
12.7
mm
+/- 0.38
(Equiv. 0.5 in.) - Wire Diameter (d)
0.59
mm
+/- 0.015
(Equiv. 0.023 in.) - Rate (P/f) 4.7 N/mm
- Approx. ID 1.9 mm
- End Type Closed Ground Flush
